About

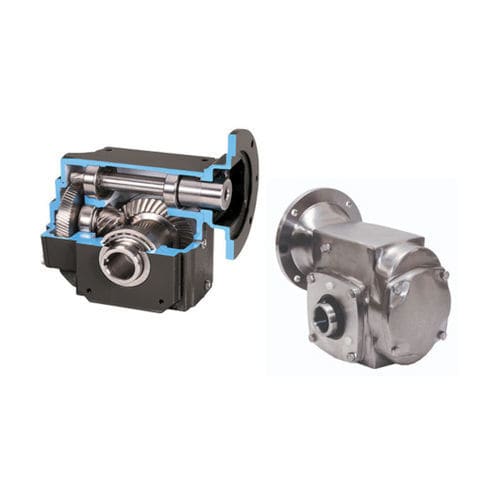

• Available in either cast iron or IP60K rated stainless steel
• Three year warranty.
• Popular "generic" bolt pattern on mounting surfaces for drop-in worm gear drive replacement.
• Mounting: Hera45 accessories available to directly replace worm products from 2.38” to 3.25” CD. Hera55 accessories available to directly replace worm products from 3.25” to 4.25” CD.
• Input: Solid shaft, quill-style motor frame (Hera45: 56C-180TC, Hera55: 56C-256TC), coupled motor frame (56C-210TC).
• Output: Hera45 solid shaft up to 1.375” diameter, hollow bore up to 1.500” diameter. Hera55 solid shaft up to 1.875” diameter, hollow bore up to 2.188” diameter.
• Lubrication: Factory-filled with food-grade PAG oil.
• Seals: Viton.
• Premium-efficiency Marathon (XRI) motors can be paired with HERA to optimize system efficiency.
• Available ratios from7/1 to 60/1 (non-integer)
Benefits
• 90% efficiency & Up to 2X more torque in a No-Hassle Worm Gear Drive replacement.
• Up to 40% Energy Savings - Smaller Motor Requirements - Longer Gearbox Life - Rapid Payback.
• One size can replace up to 4 sizes of worm gear drives.
• Four models of HERA can replace 12 sizes of worm gear drives.
Availability
• Hera35, Hera45, Hera55 and Hera75 are available in most popular configurations
Available Accessories
• Base Mounting Kits.
• Torque Arm Kits.
• Side Mount Flange Kits.
• Vertical Mount Bracket Kits.
• Plug-in Output Shaft Kits.
• C-flange (coupling type) Adapter Kits.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
worm
|
| Shaft orientation |
right angle
|
| Shaft configuration |
hollow-shaft
|
| Performance |
high-efficiency
|
| Applications |
drive
|
| Other characteristics |
|
