High-accuracy data logger

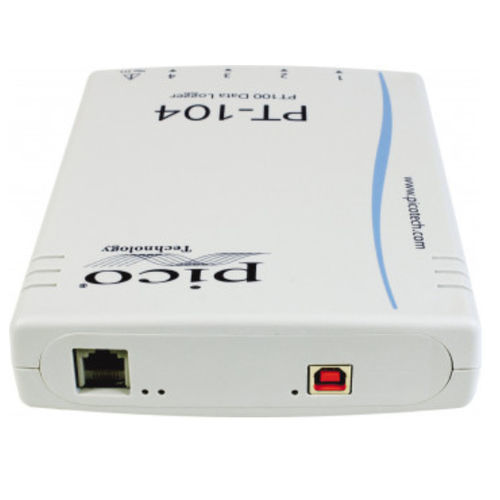

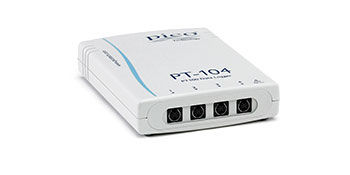

The PT-104 is a four-channel temperature measuring data logger. It offers the ultimate in resolution (0.001 °C) and accuracy (0.015 °C). Along with temperature it can also be used to measure resistance and voltage.
• Measures temperature, resistance and voltage
• High resolution and accuracy
• Works with PT100 and PT1000 sensors
• Supports 2, 3 and 4-wire sensors
• No power supply required
• USB and Ethernet interfaces
• Run multiple units on a single PC Accuracy and resolution

Although accurate temperature sensors are widely available, it has been difficult to take advantage of them due to errors caused by the measuring device. Your PT-104, however, is inherently accurate due to its innovative design. Rather than relying on voltage references, which tend to be temperature-sensitive, it uses reference resistors, which are extremely stable with low temperature coefficient and drift. The exact value of each resistor is stored in an EEPROM to provide the ultimate in accuracy (yearly recalibration is recommended). A high-performance 24-bit ADC is used to achieve the 0.001 °C resolution.
Temperature

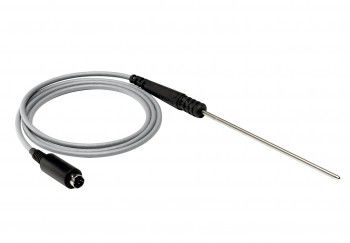

The PT-104 measures temperature using platinum resistance thermometers (PRTs). Both common industry standards (PT100 and PT1000) are supported. The unit is compatible with two, three and four-wire sensors (four-wire PT100 sensors are recommended for accurate measurements). A wide range of PT100 sensors are available for use with your PT-104.

Parameter Name	Parameter Value
Measured quantity	temperature, voltage, resistance
Connector type	USB, Ethernet
Sensor type	Pt100
Other characteristics	high-accuracy
