Rectangular, height 14 mm
Active face on top
Plastic, PBT-GF30-VO
Powered and operated only via connection to BL ident interface module
M12 × 1 connector, connection only via BL ident extension cable

Country of origin - DE
Weight - 64 g

Technical Data
Technology - HF RFID
Radio communication and protocol standards - ISO 15693, NFC Typ 5
Design - Rectangular

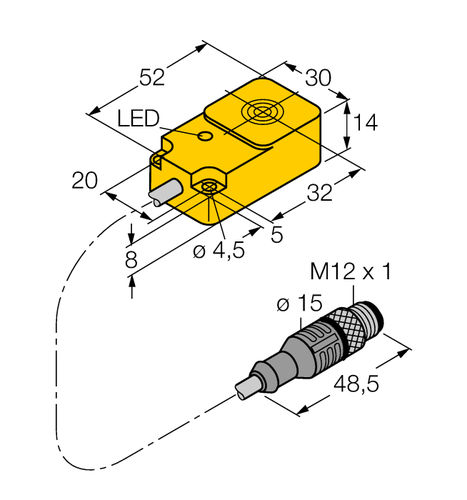

Construction size - 56 x 30 x 14 mm, Q14
Read/Write distance max. - 72 mm
Mounting conditions - Non-flush
Network protocol - Connection to RFID interface
Housing material - Plastic, PBT-GF30-V0, Yellow
Ambient temperature - -25…+70 °C

Parameter Name	Parameter Value
Other characteristics	HF NFC
Frequency (Hz)	13560000 - 13560000
Detection distance	Max.: 72 mm (2.83 in)Min.: 0 mm (0 in)
