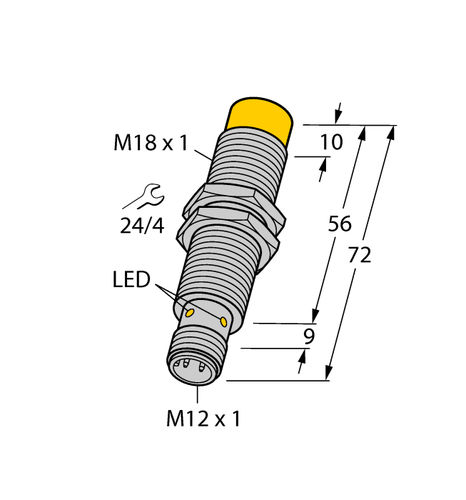

Threaded barrel, M18 x 1
Chrome-plated brass
Powered and operated only via connection to BL ident interface module
M12 × 1 connector, connection only via BL ident extension cable

Country of origin - DE
Weight - 68 g

Technical Data
Technology - HF RFID
Radio communication and protocol standards - ISO 15693, NFC Typ 5
Design - Threaded barrel
Construction size - M18 x 1
Read/Write distance max. - 45 mm
Mounting conditions - Non-flush
Network protocol - Connection to RFID interface
Housing material - Metal, CuZn, Chrome-plated
Ambient temperature - -25…+70 °C

Parameter Name	Parameter Value
Other characteristics	HF NFC
Frequency (Hz)	13560000 - 13560000
Detection distance	Max.: 45 mm (1.77 in)Min.: 0 mm (0 in)
