Rectangular, height 8 mm
Active face on top
Metal, GD-Zn, nickel-plated brass
Powered and operated solely via BLident interface module
M12 × 1 male, connection only via BL ident extension cable

Country of origin - DE
Weight - 37 g

Technical Data
Technology - HF RFID
Radio communication and protocol standards - ISO 15693, NFC Typ 5
Design - Rectangular

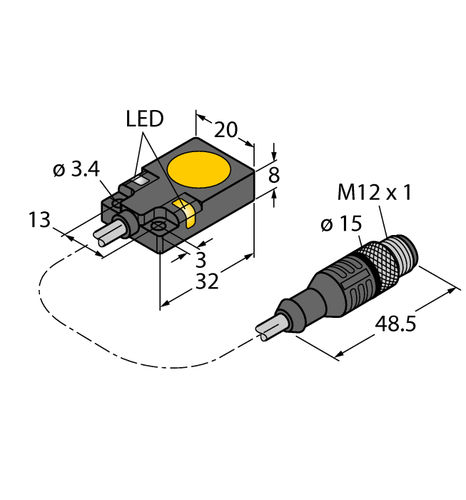

Construction size - 32 x 20 x 8 mm, Q08
Read/Write distance max. - 30 mm
Mounting conditions - Flush
Network protocol - Connection to RFID interface
Housing material - Metal, GD-Zn
Ambient temperature - -25…+70 °C

Parameter Name	Parameter Value
Other characteristics	HF NFC
Frequency (Hz)	13560000 - 13560000
Detection distance	Max.: 30 mm (1.18 in)Min.: 0 mm (0 in)
