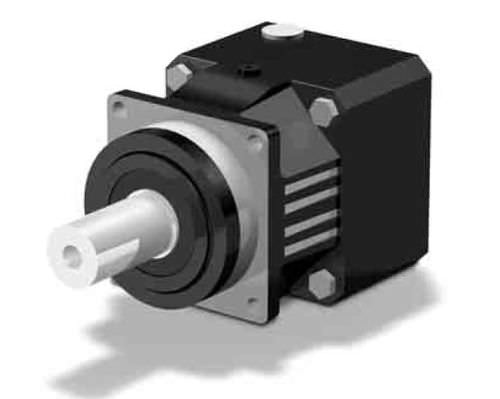

Planetary gear units from STOBER: The premier class of drive technology.
Since the 1980s, STOBER has specialized in the development of planetary gear units, the premier class of drive technology!
At the end of 2019, we presented the 3rd generation of planetary servo gear units, bringing drive solutions that are the most compact on the market for their performance range and enormous variety of combinations and options!
Shaft: Solid shaft with or without feather key
Bearing: Standard, axial or radial reinforced
Backlash: Standard or reduced
Mounting position: Any
Lubricants and maintenance:
Synthetic lubricant CLP HC ISO VG 150
Lubricated for life and maintenance-free
Paint: RAL 9005 Jet black
Motor adapter:
EasyAdapt (ME) with clamp coupling, optionally with a large motor plate (MEL)
FlexiAdapt (MF) with bellow coupling and integrated thermal length compensation, optionally with a large motor plate (MFL)
ServoStop (MB) with plug-in coupling (jaw coupling) and integrated spring-loaded brake
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
helical
|
| Shaft orientation |
coaxial
|
| Torque (Nm) |
|
| Performance |
|
| Applications |
for shaft
|
| Rotational speed (rpm) |
3000 - 8000
|
| Backlash (°) |
0.02 - 0.13
|
| Gear ratio (unit) |
3 - 100
|
