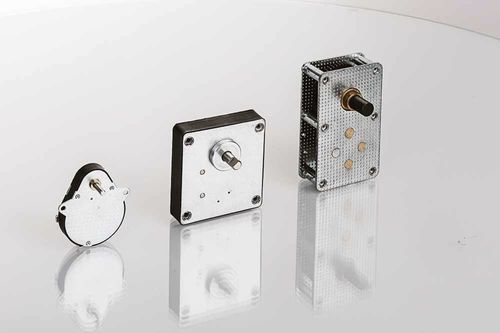

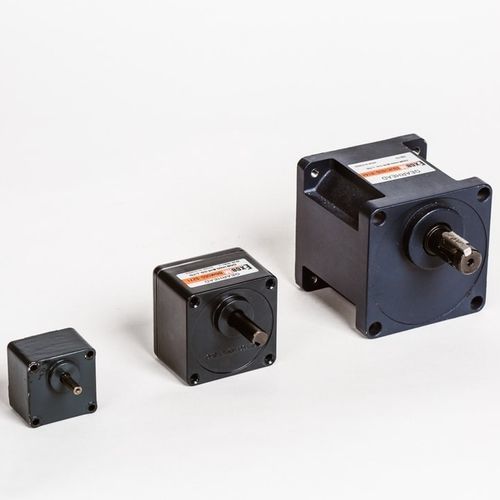

The robust ELRA helical gearboxes are ideally suited for continuous operation where long service life is required and for applications where the overall length is limited. We offer our customers a wide range of sizes as well as special designs. Just ask one of our application engineers!

• Size WxH 60 ... 90mm

Parameter Name	Parameter Value
Type	helical
Shaft orientation	parallel-shaft
Torque (Nm)	10 - 20 5 - 10 20 - 50
Shaft configuration	solid-shaft
Applications	for DC motors for stepper motors
Other characteristics	for continuous operation
Gear ratio (unit)	5 - 200
