for shaft mounting too. Monolitic iron body. Max 5900Nm

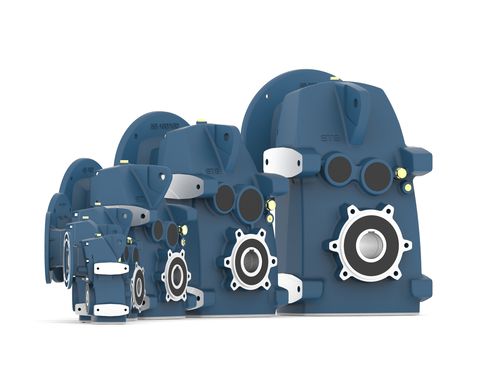

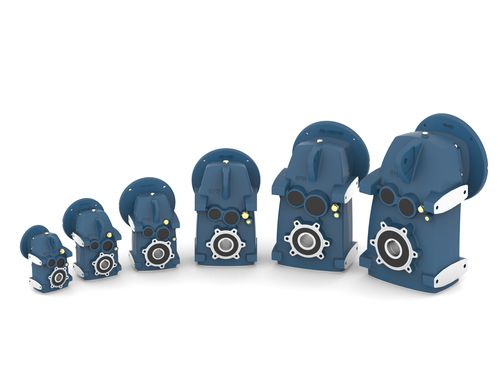

STON is the new parallel shaft and shaft mounted gearbox. In cast-iron monolithic body. 3 sizes, with a capacity of up to 5900Nm. MADE IN ITALY

uniquely contoured, rigid, precise, monobloc, cast iron Body, Base and flange ensure extreme robustness.

a modular design with detachable output flange and integral feet permits the easy and fast conversion between flange or foot mounting

unique construction of ston makes it possible to mount any size in any position. this flexibility is achieved by: + ZZ autolubricating bearings on input and output shaft

+ mechanical parts locked in their positions by snap rings.this also ensures better absorbtion of axial thrust and prolongs the life of bearings

2 or 3 reduction stages inside the same body, in order to have a wider and more reliable range of ratios

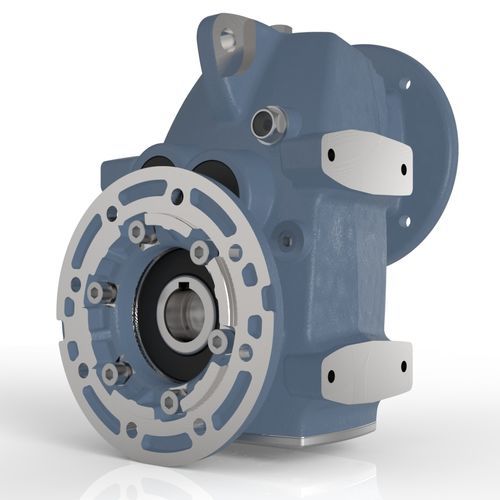

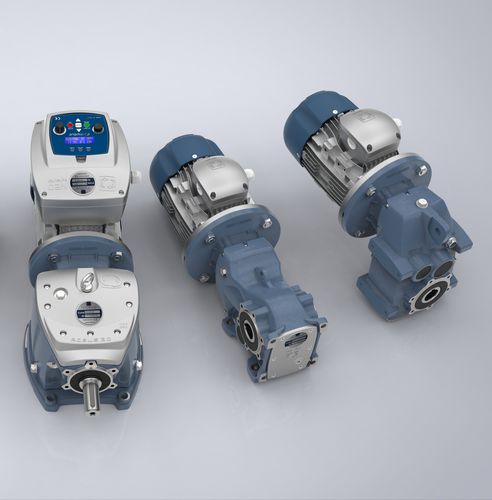

iec flange and hollow shaft. choice of hollow input flanges permits direct mounting of any standard motor

5 interchangeable plugs, including one breather plug and a level plug please note that the vent plug also allows you to reduce the internal pressure on seals, and thus increases the efficiency of the gearbox

MADE IN ITALY

Parameter Name	Parameter Value
Type	helical
Shaft orientation	parallel-shaft
Torque (Nm)	200 - 500 20 - 50 100 - 200 50 - 100 500 - 1000 1000 - 2000 1 - 5 2000 - 5000 10 - 20 5000 - 10000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	three-stage two-stage
Applications	transmission for shaft
Other characteristics	industrial modular flange shaft-mounted mounted
Rotational speed (rpm)	650 - 2900
Power (W)	130 - 30000
