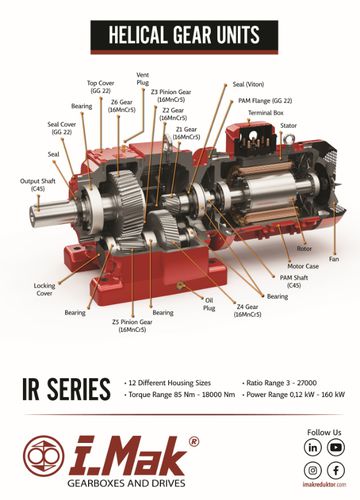

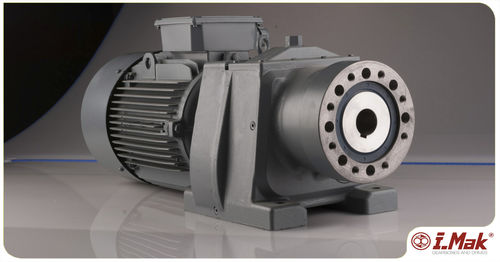

Available in one or two stage of gears, the IR Series gearboxes provide optimal solutions for a large range of application. The unicase housing of the gearbox and the gears technology is offering a perfect balance between power and space optimization.

Product advantages:

- Compact modular mounting
- Large range of mounting solutions
- Adapted to a large range of sectors and applications
- High ratios to reach low rotation speed
- Support high radial load.

Type of applications :

- Mixers
- Conveyors
- Water treatment
- Packaging

Parameter Name	Parameter Value
Motor type	AC
Type	helical
Shaft orientation	coaxial
Shaft configuration	solid-shaft
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000 10000 - 20000 20000 - 50000 50000 - 100000 100000 - 200000
Torque (Nm)	200 - 500 500 - 1000 1000 - 2000 2000 - 5000
Performance	for heavy loads
Product applications	for the food industry industrial industrial door for the chemical industry for heavy loads for automation for medical equipment for industrial applications for lifting applications for conveyors for hostile environments for mixers for the packaging industry for pharmaceutical applications for automatic distributors wiper for hygienic applications
Other characteristics	compact modular cast iron
Gear ratio (unit)	3 - 27000
