Screen Size - 4.0inch
LCD Type - TFT
Module Interface - HDMI
Resolution - 800*480 (Pixel)
Active Area - 51.84×86.40(mm)
Touch Screen Controller - XPT2046
LCD Driver IC - NT35510
Backlight - LED
power consumption - 0.16A*5V
Working temperature（℃） - -20~60
Module PCB Size - 98.60*58.05 (mm)
Package Size - 143*134*51 (mm)
Rough Weight(Package containing) (g) - 126 (g)

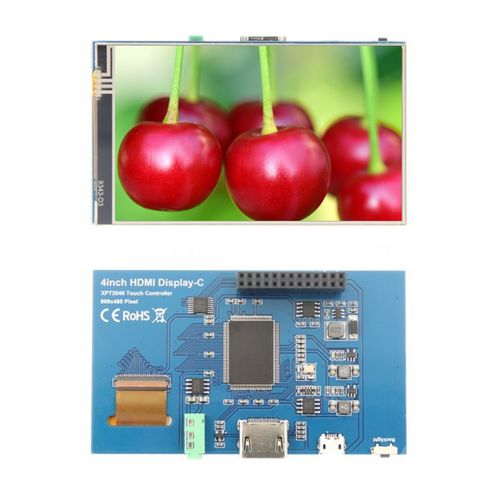

4.0-inch IPS full-angle display, support HDMI input, refresh rate up to 60FPS
The physical resolution is 800×480
Raspberry Pi monitor with touch control (need to install touch driver)
It can be used as standard HDMI output device for computer display(no touch function)
Compatible with and can be directly inserted into all versions of raspberry PI motherboards (raspberry PI 1 generation B and Zero need additional HDMI cable)
Support HDMI audio output, backlight brightness adjustable

Parameter Name	Parameter Value
Type	color LCD/TFT IPS with touch screen dot-matrix
Format	800 x 480
Applications	industrial digital signage instrumentation for vehicles current measurement for marine applications
Other characteristics	high-brightness HDMI electronic LED-backlit cost-effective indoor
Width (mm)	98.6 - 98.6
Height	58.05 mm (2.2854 in)
