Ring Style Harmonic Solutions
Precision. Motion. Control.

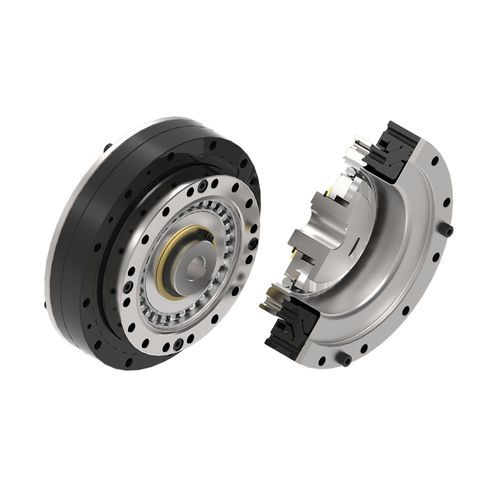

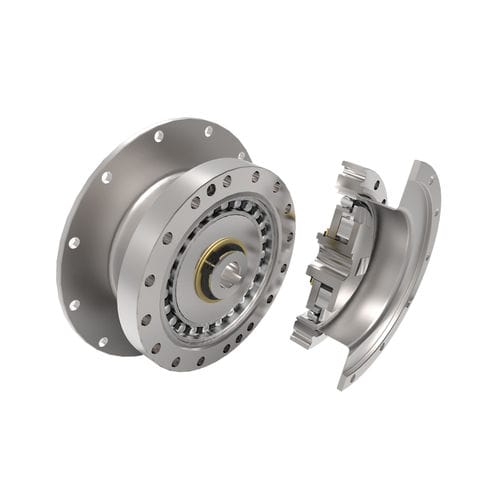

Cone Drive Harmonic Solutions® are in-line motion control solutions consisting of three main components: wave generator, flexspline, and a circular spline.

Ring style gears are perfect when axial compactness and passing cables through the gear center are the most important features.

Key Features

Sizes: 14,17,20,25,32
Flex spine sizes: Single + double input bearing
Configuration: Component set only. No Gearhead option
Standard Input Options: Keyed or Set Screws
Custom Input Options: Throughbore, Dowel Pins, Tapped Holes, Piloted, Stepper/Servo Motor Ready, Special Materials and Coatings

Parameter Name	Parameter Value
Type	harmonic
Torque (Nm)	200 - 500 100 - 200
Performance	precision
Applications	drive
Other characteristics	custom generator motor
Gear ratio (unit)	50 - 160
