Easy laying of up to 7 concrete blocks.
Attached to the lifting units up to HE-150, you can lay up to 7 concrete blocks safely and quickly with the Probst multiple suction plates MFS.
MFS-150-7-S-15Rd (rigid): Multiple suction plate (7 bellows) with various predefined hole spacings for mounting the bellows. It is also possible to lift only 5 or 6 bricks. Unused bellows can be plugged with an optionally available protective cover and sealing plate and mounted on top of the traverse for trouble-free operation.

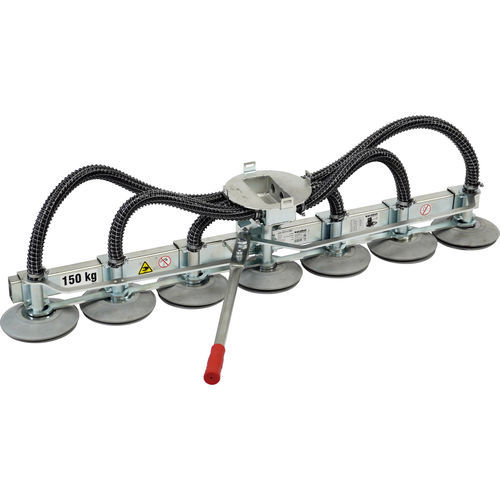

MFS-150-7-V-15Rd (movable): Multiple suction plate (7 bellows) with distance adjustment. Especially when laying gutter stones, a distance between the individual stones is prescribed in accordance with DIN18318 (road construction work, paved surfaces and slabbed surfaces).
Therefore, with this MFS, a distance of 8 mm can be set between the individual stones in the raised state via a hand lever.
Further information:
-Height and angle compensation means that even rows of stones that are not completely level can be lifted.
-Fast suction process.
-Sealing bellows can be quickly replaced without tools.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Application |
for handling systems
|
| Options |
|
