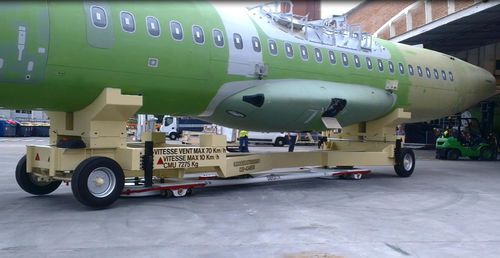

Seaqx omni-directional airplane transporter is designed to lift and carry a cradle with an airplane fuselage. However, the transporter can be used in several other applications which require omni-directional movement and/or extremely low building height.
The Seaqx 15T- airplane transporter measures only 285mm in height. All drives, controls and lifting equipment are integrated in this height. The transporter is equipped with 2 steerable flat-drives and 4 sets with 2 heavy-duty swivel wheels. Thanks to the flexible design of the transporters frame, the load is proportionally divided over all wheels.
The transporter is controlled by a single operator with a wireless radio remote control. To move the fuselage safely into a workstation, 2 optical cameras assist the operator and correct the steering of the drives automatically (Seaqx optical drive assist).

The pallet or cradle with the load is lifted by 4 hydraulic cylinders.
The transporter is battery driven and radio remote controlled.

Features :
- high traction force : 4x 1000kg
- available speed : empty up to 15m/min, in option higher speeds available
- positioning accuracy : within mm
- battery driven - maintenance-free batteries
- clean
- radio remote controlled
- adaptable dimensions
- low building height

Application : in-factory transport of all sorts of pallets, cradles or loads

Parameter Name	Parameter Value
Applications	handling for heavy loads assembly
Specifications	electric omnidirectional 4 cameras
Load (kg)	1000 - 20000
