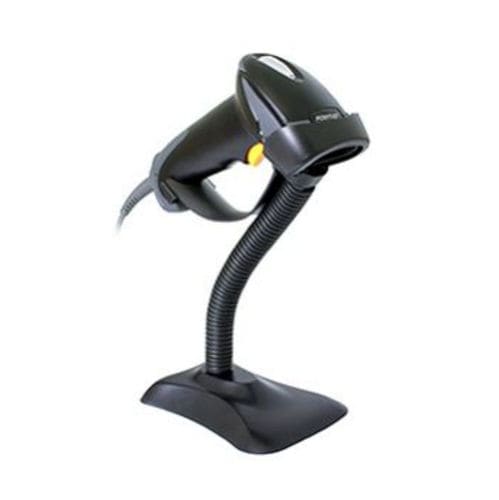

The CD-3870 Series long range CCD barcode scanner is a cost effective, easy to use, long range scanner designed for retail, point of sale, or any repetitive application where time and accuracy are important.

Light Source - Red light LED
Resolution - 0.075 mm/3 mil
Depth of Field - 20 mm – 500 mm
Scan Method - CMOS array sensor
Scan Angle - 45°
Scan Rate - 270 scan/sec
Decode Capability - Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen. Option decodable: RSS-14, RSS Limited, RSS Expanded
Interface - USB (CD-3870U) or Serial (CD-3870R)
Dimension [W x D x H in mm] - 160 x 60 x 30
Weight [N. W. in g] - 120

Parameter Name	Parameter Value
Portability	handheld
Type	1D
Applications	for retailers POS
