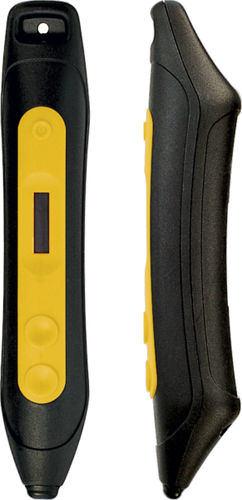

The IS-MP.2 is a handheld reader for easy and efficient reading of RFID/NFC TAGs that are located closely together or positioned in areas that are difficult to access. The TAG information can be viewed directly on the OLED display, transferred via Bluetooth or read the storage via USB.

ADVANTAGES
•Bluetooth® 4.0 LE
•vibration feedback
•OLED-Display
•memory for 1000 readings
•battery capacity for 2000 Bluetooth readings
•1 … 3 cm reading distance
•real-time clock
•apps with remote use available

APPROVALS
•ATEX zone 2/22
II 3G Ex ic IIC T4 Gc IP54
II 3D Ex ic IIIB T135°C Dc IP54
•IECEx zone 2/22
Ex ic IIC T4 Gc IP54
Ex ic IIIB T135°C Dc IP54

Technical Data
type:IS-MP.2
size:190 x 30 x 35 mm
weight: 125 g
Bluetooth®:4.0 LE
memory:for 1000 readings
battery capacityfor 2000 Bluetooth readings
display:OLED
reading distance:1 … 3 cm
RFID/NFC tag-reader:LF 125kHz,
LF 134,2 kHz
FDX-B + HDX,
HF und NFC 13,56 MHz,
UHF 868 MHz

Allows individual configuration.
protection type:IP54
temperature range:-20 °C … +60 °C
apps with remote useavailable
vibration feedback
real-time clock

Parameter Name	Parameter Value
Configuration	hand
Connector type	USB, Bluetooth
Other characteristics	UHF HF
Frequency (Hz)	13560000 - 13560000
Detection distance	Max.: 3 cm (1.18 in)Min.: 1 cm (0.39 in)
