About

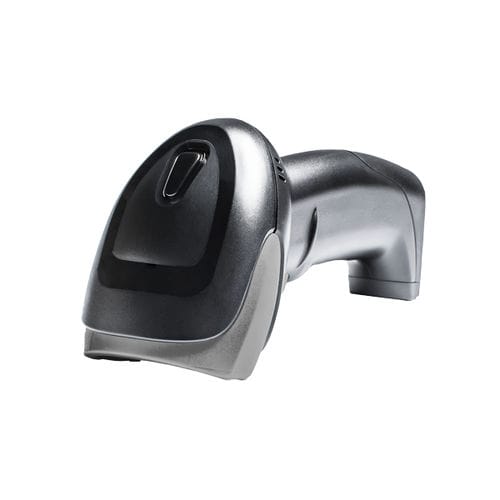

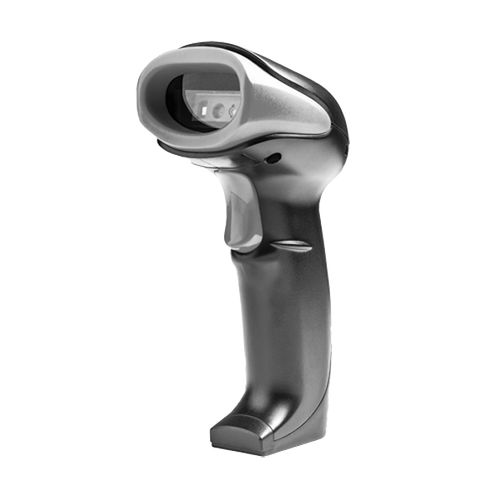

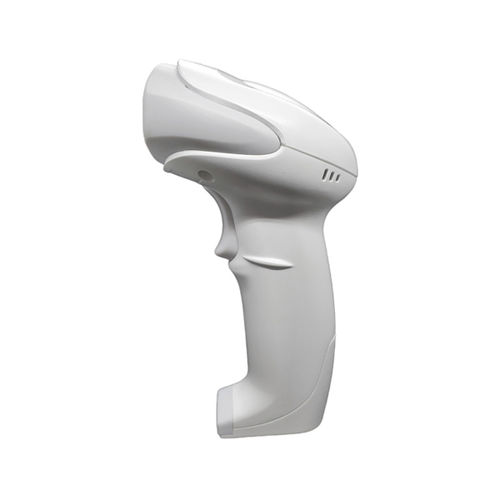

BD-6530 delivers aggressive scan performance on all linear barcodes and 2D codes. It provides fast and reliable scanning performance. It’s ergonomic design and available with multiple interfaces that changes interface by replacing cable. BD-6530 is valued product of general purpose cabled scanner. It’s perfect for using in retail, document/billing process and banking/finance environment, health care, medical industry.
General
Interface: USB-KB / USB-COM / RS-232
Barcodes supported (1D): UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D): PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor: CMOS area sensor, 640 x 480 pixels
Light Source: 610 nm RED LED /White LED 6000- 6,500K
Resolution: 3 mil (Code 39), 6.67 mil (Data Matrix, QR Code)
Field of View: Horizontal: 28°; Vertical: 36°
Frame Rate: 120 fps
PCS: 30%
Indicator: Beeper and LED
Electrical
Voltage: DC 5V
Scanning Currents: 130 mA
Standby Currents: 95 mA
Environment
Operating temperature: 0℃ to 40℃ (32℉ to 104℉)
Storage temperature: -40℃ to 70℃ / -40℉ to 158℉
Operating Humidity: 10% - 95% RH non-condensing
Storage Humidity: 10% - 85% RH non-condensing
Shock resistance: 1.5m drops
Physical
Weight: 180g (w/cable)
Dimensions: 185.48mm (L) x 66.57mm (W) x 90.83mm (H)
Housing Material: ABS plastic
Cable: Length: 5ft (150cm) / USB Type A or C, RS-232
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Portability |
hand
|
| Number of axes |
2D
|
| Other characteristics |
|
