About

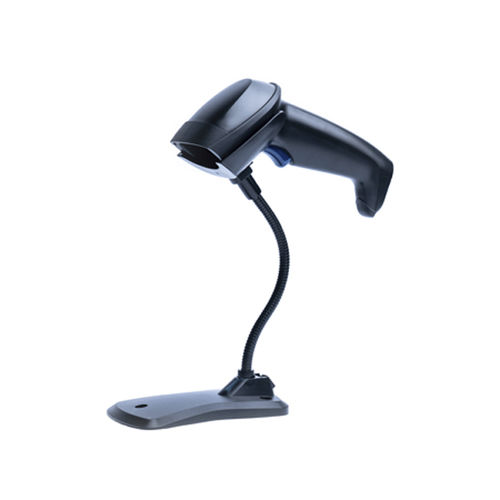

BD-1530 delivers aggressive scan performance on all linear barcodes and 2D codes. It provides fast and reliable scanning performance. It’s ergonomic design and available with multiple interfaces that changes interface by replacing cable. BD-1530 is valued product of general purpose cabled scanner. It’s perfect for using in retail, document/billing process and banking/finance environment, health care, medical industry.
General
Interface:USB-KB / USB-COM / RS-232
Barcodes supported (1D):UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D): PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor:640 (H) x 480 (V) pixels
Light Source:Aiming 610nm red LED + Illumination 6000-6500k white LED
Resolution:3 mil (Code 39), 6.67 mil (Data Matrix , QR Code)
Field of View: Horizontal: 28°; Vertical: 36°
Frame Rate: 120 fps
PCS: 30%
Indicator: Beeper and LED
Electrical
Voltage: DC 5V
Scanning Currents: 130 mA
Standby Currents: 95 mA
Environment
Operating temperature: 0℃ to 40℃ (32℉ to 104℉)
Storage temperature: -40℃ to 70℃ / -40℉ to 158℉
Operating Humidity: 10% - 95% RH non-condensing
Storage Humidity: 10% - 85% RH non-condensing
Shock Resistance: 1.5m drops
Light Levels: 100,000 lux
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Portability |
hand
|
| Number of axes |
2D
|
