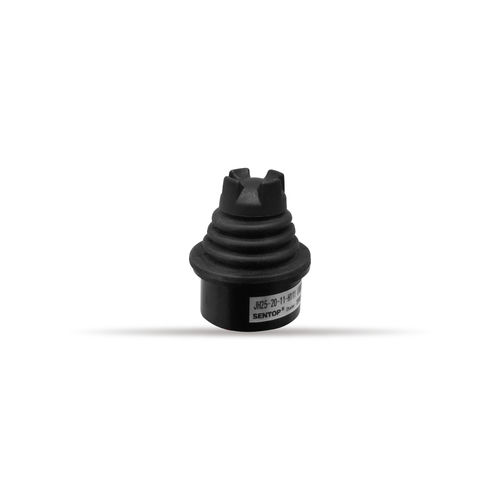

JH25 Series Hall Effect Joystick

- Miniature thumbstick
- Available redundant output
- IP67 (electrical parts)
- 2-dimensional coordinate type, Omni-directional 360°operation (X and Y), special operating method optional
- With rubber cover and spring return device
- Standard Knob
- Straight line without central position hold output characteristic (standard), special output charcteristic optional

General Specifications
- Operating angle: Approx.±25°from center position
- Operating force: Approx.2.5N~3.5N
- Max. operating force: 200N
- Mechanical life expectancy: Approx.5,000,000
- Operating temperature range: -20℃~+85℃
- Storage temperature range: -40℃~+85℃
- Protection grade: IP67 (electrical parts)

Electrical specifications
- Input voltage/output signal:
5V input, 0~5V output
5V input, 0.5~4.5V output
9~30V input, 0~5V ouput
9~30V input, 0.5~4.5V output
Special output signal optional
- Current consumption (no-load): >100 KΩ
- Output deviation at both ends:1000MΩ(500V.D.C.)
- EMS: 10V/m (80MHz-1GHz 1KHz 80%)

Special Specifications
- Other output signals:Available for PWM signal output.
- Special knob:Special knob and motifs on the knob are available upon request.
- Other special specifications:Available with customer-specific connectors; available with protection module.

JH25 can be customized in accordance with your special requirements.
Please contact us at trade1@sakae.cn for customization.

Parameter Name	Parameter Value
Technology	Hall effect compact 2-axis analog contactless inductive
Applications	for remote control for motorized stages for CCTV applications for medical applications for assistive technology
Other characteristics	IP67 thumbwheel multi-function
