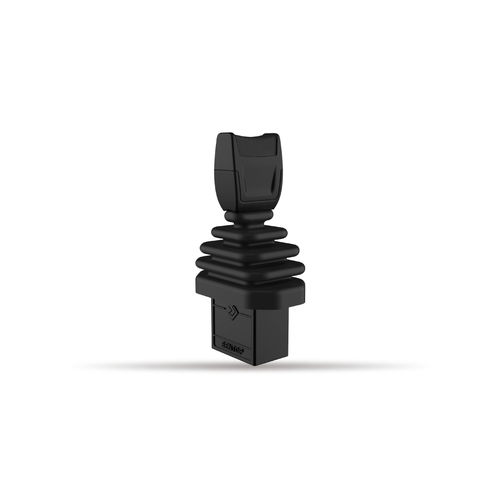

JH22B Series Hall effect Joystick

- Fingertip Joystick

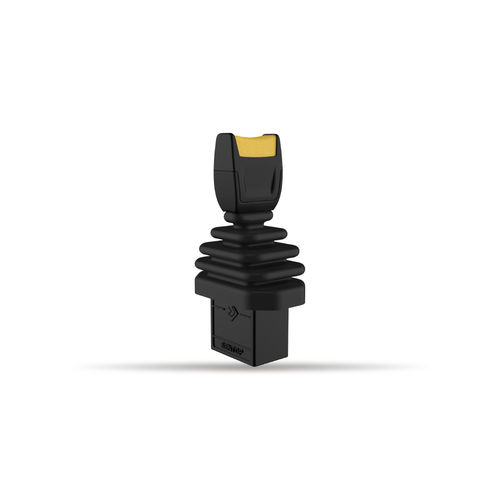

- Coloured cap
- Available redundant output
- 1-dimensional coordinate type joystick
- With rubber cover
- With spring return device

General Specifications

- Operating angle：约 Approx. ±30°（from center position）
- Operating force：约 Approx. 3.5N~8.5N
- Max.operating force - ：50N
- Mechanical life expectancy：Approx. 5,000,000
- Operating temperature range：-20℃~+85℃
- Storage temperature range：-20℃~+85℃
- Mass：约 Approx.38g
- Protection grade：IP67 (electrical parts），IP65 (above panel）

Electrical Specifications

- Input voltage：5V±10% 9~30V 15~30V 15~30V
- Output signal：0～100%Vcc 0~5V 0~10V 4~20mA
- Current consumption (no-load) ：<16mA <25mA 100KΩ >100KΩ <600Ω
- Output deviation at both ends：<1%.Vcc <50mV <50mV 1000MΩ(500V.D.C.)
- EMS：10V/m(80MHz~1GHz 1KHz 80%)

Special Specifications Available

- Other output signals:Available for PWM signal output.
- Special knob:Special knob and motifs on the knob are available upon request.
- Other special specifications:Available with customer-specific connectors; Available with protection module.

For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Technology	Hall effect compact single-axis analog
Applications	for remote control
Other characteristics	IP67 fingertip
