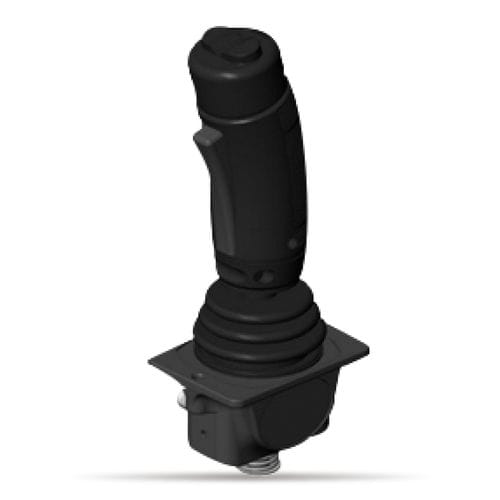

JH80 Series Hall Effect Joystick
- Hall effect joystick
- Firm and reliable structure
- Various outout signals
- With rubber cover(optional
- With spring return device

General Specifications
- Operating angle: Approx. +30
- Operating force: Approx. 1.15 - 1.85 Nm
- Mechanical life expectancy: Approx. 10000.000Operating/Storage temperature range: -40C~+ 85C
- Protection grade: IP67 (Electrical parts)

Electrical specifications (switch)
- Push Button Switch
- Rating: 30V.D.C./ 0.1A
- Electrical life expectancy: Approx. 1000,000Insulation resistance: =1000MQ (500V.D.C)Dielectric strength: 1min (1000V.AC)
- Electrical specifications (Hall effect potentiometerInput voltage: 5V+10% 9-30V 15-30V 15-30Voutput signal: 0-100%VCC 0-5V 0~10V 4-20mA
- Load resistance:=100KQ =100KQ =100K <6000
- Output deviation at both ends: <1%VCC -50mV <50mV -0.05mA
- Current consumption (no-load): <16mA <25mA <25mA <35mA
- Independent linearity tolerance:+2%
- Resolution.4096 (12 bits)

Special Specifications
- 10V applied, 0-10V output, 3.3V applied, 0-5V output and PWM
- SSIRS485,CANopen, USB,Modbus, wireless conmunication(LoRa)other digital signal, bus signal, etc.
- Customized knob, with push button switch (with light is optional), etc
- With customer-specific connectors, with protection module

JH80 can be customized, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Technology	single-axis Hall effect analog switch
Applications	for remote control for utility vehicles for off-highway vehicle for aerial work platform
Other characteristics	with buttons rugged IP67 with switch CAN bus PWM spring-return with dead-man switch
