Dual function mouse - rugged joystick
Switching between mouse pointer and 3-axis joystick function.
Robust, vandalproof construction
Brushed stainless steel carrier plate
Designed for harsh industrial applications, navigation controls, etc…
The speed of the cursor movement can be adapted (OEM only).
No special drivers required

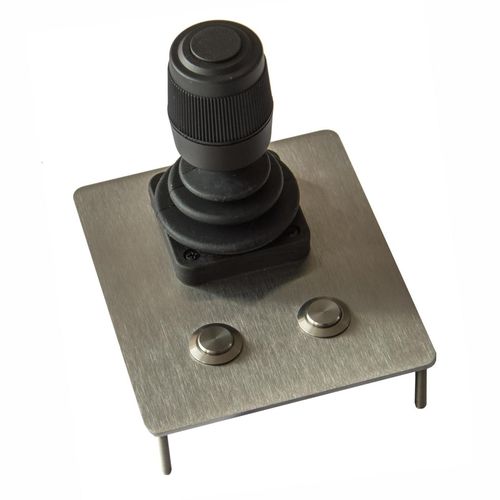

This dual function industrial joystick unit provides a combined functionality into one single device. One modus enables the user to use the unit as a mouse pointer, the second modus will provide the user with a 3-axis joystick function. Switching between the two functions is done by pressing the pushbutton that sits on top of the joystick.

This 3-axis joystick unit has a robust, vandalproof construction and metal look : the carrier plate made of brushed stainless steel and two anti-vandal stainless steel IP65 sealed switches. Highly ruggedized and designed for harsh industrial applications, navigation controls, etc…
The speed of the cursor movement can be adapted (OEM only). No special drivers required

Sealing : IP55
Carrier plate : brushed stainless steel
Dimensions : 100 x 116 mm
Weight : 0,5 kg
Output : USB
Cable : 1 shielded, straight 1,6 m long
Operating temperature range : -10°C to +60°C
Storage temperature range : -25°C to +70°C

Connectivity

This industrial joystick-mouse unit has a 1,6 meter long shielded straight cable ended by a USB type A plug.

Parameter Name	Parameter Value
Technology	Hall effect 3-axis double-contact
Applications	for CCTV applications
Other characteristics	USB IP65 multifunction
