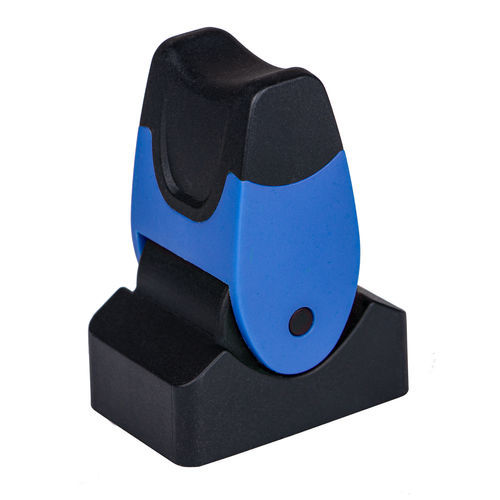

C5 Paddle Joystick
C5 Paddle Joystick

Reference price ：
￥0.00
Next： FJ12 fingertip joystick
Technical data
1. Product Features

Ergonomic design, fingertip-operated

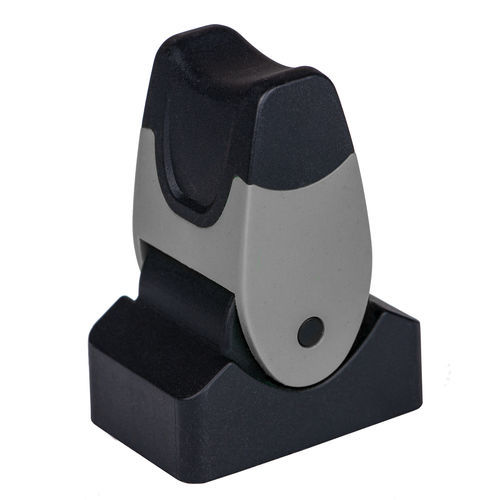

Different paddle colors

Compact design, easy to mount on the top of panel

Side-by-side mount available, saving space

Non-contacting hall effect technology, long lifetime

Design for severe environment, IP67 (electronics)


2. Market Focus

Industrial remote controller

Control panel

Armrest box


3. Technical Specifications

3.1 Mechanical Data

Travel angle: ±30°

Operating force: 1.6-3.5N

Maximum allowable force: 30N

mechanical life: 3 million cycles

Weight: 40g


3.2 Electrical Data

Supply voltage: 5.0±0.5vdc

Power current consumption: 10KΩ

Insulation resistance: >1000MΩ

EMC: 100V/M


3.3 Environmental Data

Operating temperature: -40℃-+70℃

Storage temperature: -40℃-+85℃

Protection class: IP67 (only for electronics）

Parameter Name	Parameter Value
Technology	Hall effect single-axis analog 2-axis compact digital
Applications	for remote control for off-highway vehicle
Other characteristics	IP67 multifunction SAE J1939 panel-mount fingertip CAN bus thumbwheel spring-return CANopen with integrated control handle with armrest with ball handle with interlock system
