VERY FLEXIBLE DESIGN FOR LEADING-EDGE MACHINE MANUFACTURERS

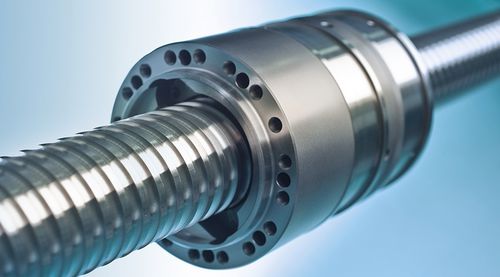

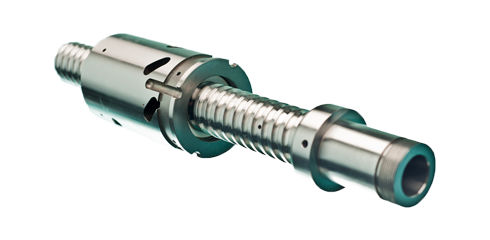

Developed to meet the needs of leading-edge machine manufacturers across a wide range of industries, Moog ball screws flexible design provides a unique and competitive advantage in a variety of applications.

• ISO3408-3 classes 1-3-5-7
• Pitch from 1.5 mm [0.06 in] to 80 mm [3.14 in]
• Length up to 6,200 mm [244 in]
• Acceleration 15 to 30m/sec2
• Single or multi-start

Parameter Name	Parameter Value
Material	inox
Performance	for heavy loads high-performance low-noise
Type	ground
Other characteristics	compact
Diameter (mm)	12 - 100
Load rating	1,450 kN, 3,300 kN
