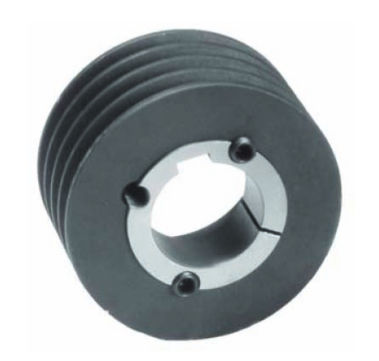

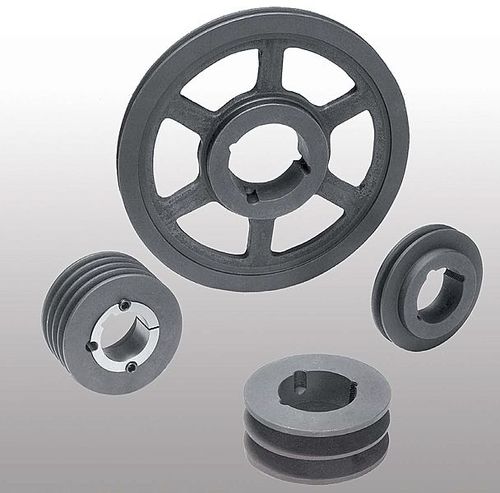

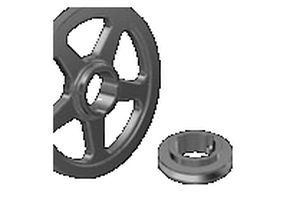

V-belt pulleys for taper bushes.

Our V-belt pulleys are manufactured according to International Standard ISO 4183 / DIN 2211

Material
Cast iron EN-GJL-200 (G20 - UNI 5007)

Protective treatment and balancing
The surface of all our standard pulleys is protected by phosphated treatment.
All the pulleys are Statically Balanced and can be used for peripheric speed up to 35 m/sec

Parameter Name	Parameter Value
Type	groove with taper bushing
Applications	ribbed belt V-belt
Other characteristics	cast iron
Pitch diameter	Min.: 50 mm (1.97 in)Max.: 800 mm (31.5 in)
Outside Diameter	Min.: 54 mm (2.13 in)Max.: 804 mm (31.65 in)
Width (mm)	16 - 76
Weight (kg)	Min.: 0.24
