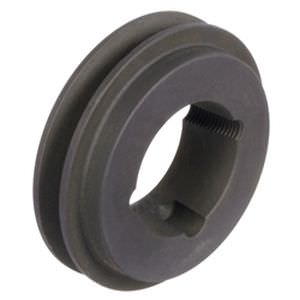

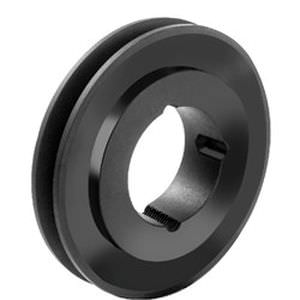

Groove pulley 15110600

Groove pulley 15110600

Groove pulley 15110600

About


V-Belt Taper-Pulleys, 1 Groove, Profile XPZ, SPZ and Z (10)
Material: Grey cast iron EN-GJL250. V-Belt Pulleys for Taper Clamping Bushes. To be used with v-belts in accordance with DIN 2215 and DIN 7753. Ready-to-install, for use with taper-bushings. Taper-bushings are available for varios shaft diameters and have to be ordered seperately. Design: A = Spoked pulley. B = dished pulley. V = solid pulley. Type: See drawing above. Relation of hub to rim: bü = flush. rü = set back. v = projecting. Other diameters oder larger number of grooves can be delivered at short notice, on request.



PARAMETERS

Parameter Name Parameter Value
Type
groove
Applications
V-belt
Other characteristics
cast iron
Weight (kg)
Max.: 4.8
