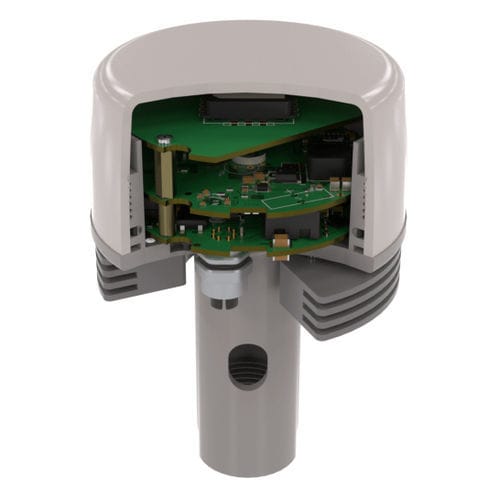

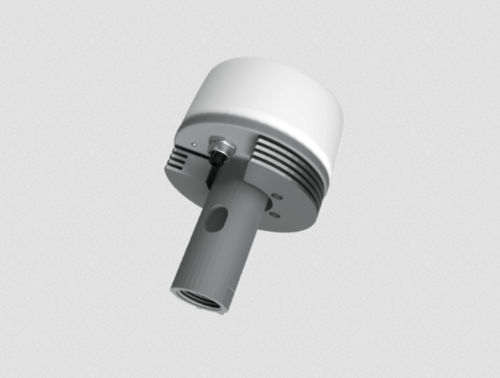

Grand Master Clock elevated time server module integrated with GPS receiver that offers simultaneous functionality of network synchronization with IEEE 1588v2 Precision Time Protocol (PTP), Synchronous Ethernet (SYNCE) and Network Time Protocol (NTP) protocols, which uses a precision GNSS receiver for synchronization.

Properties and Benefits

-Integrated 72-channel high-precision GNSS receiver with support for GPS / QZSS, GLONASS, BeiDou, Galileo
-IEEE 1588-2008v.2 (PTPv2): precision time synchronization protocol, with hardware support; precise time synchronization for real-time applications with support for profiles such as IEEE C37.238-2011 or 2017 Power Profile, IEEE61850- 9-3, ITU-T G.8265.1, ITU-T G.8275.1 (L2 multicast), ITU -T G.8275.2 (L3 unicast), Telecom 2008, and defaults to Ethernet
-Stable OCXO oscillator with precision depending on the module version (standard stability +/- 20ppb, holdover +/- 1.5us @ 0.5h)
-UTP 100/1000Mbit / s interface with M12 connector with IP65 waterproofing
-Synchronous Ethernet Support (ITU-T G.8261)
-Hardware and software support for SSM for Synchronous Ethernet
-Built-in NTP server
-The structure was designed in accordance with the requirements of IEC61850-3, IEEE1613 standards
-Management of IP, HTTP, telnet, SSH, SNMP v1/v2c/v3
-Power supply: PoE IEEE802.3af PD via twisted pair
-Optional STP/UTP patchcord up to 100m with M12-RJ45 connectors
-Integrated surge protection ITU-T K-44 and integrated lightning arrester
-Working temperature -40 to + 70 ° C

Parameter Name	Parameter Value
Options	network GPS for outdoor use PTP IEEE 1588 GNSS with integrated GPS NTP Grandmaster PoE
