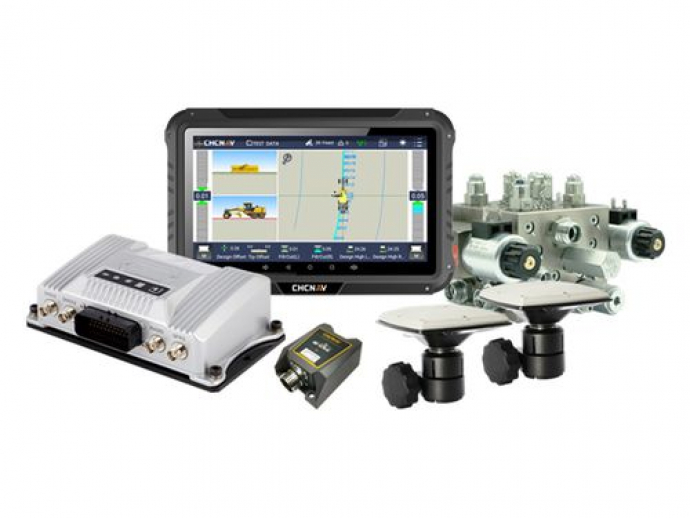

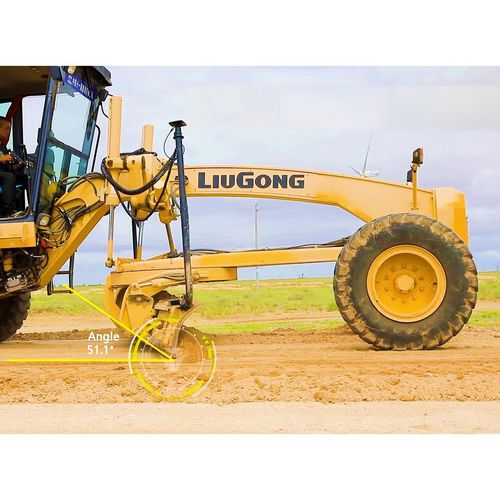

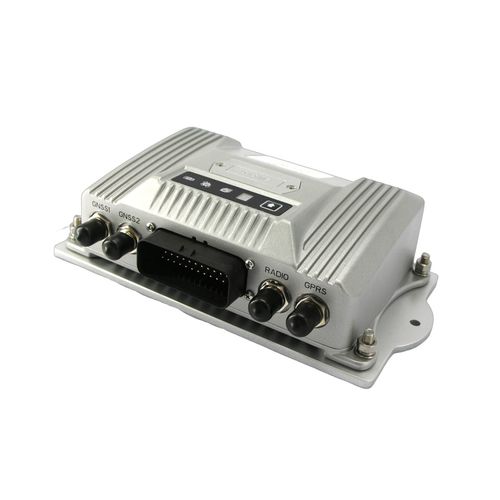

The CHCNAV TG63 is an automatic 3D grade control system for motor graders designed to improve the quality and efficiency of grading operations. The high-precision dual-GNSS positioning system and inertial sensor featuring the GR-Tech technology provide reliable 3D positioning and heading to control the motor grader blade, regardless of the machine's position and site conditions. Real-time automatic control of the blade to design the surface allows finished grading accuracy to be achieved in less time and increases efficiency and productivity by eliminating the need for manual staking.

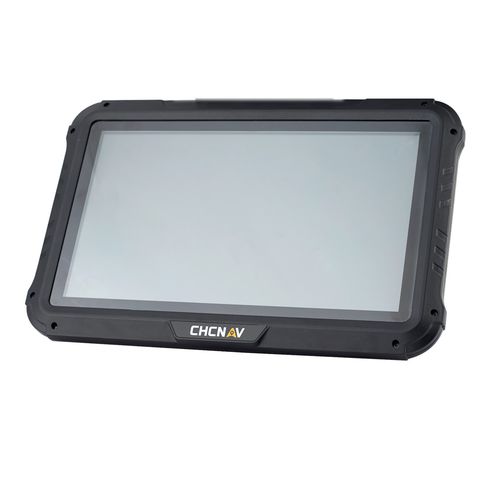

The 10.1-inch industrial touch screen keeps the system operating at the operator's fingertips. The GradeNav software provides complete and user-friendly control to the machine operator. Detailed displays of job information, including project configuration, cut and fill data, and geofencing areas, are always accessible at a glance. For added safety, an optional rear camera is available to provide the operator with an even broader view of the job site.

By breaking the price barrier, the TG 63 provides construction companies of any size with a complete, integrated solution for grading operations that allows the work to be done faster, delivering better results with overall data consistency and less rework.

Parameter Name	Parameter Value
Function	grading
Type/technology	CAN-Bus
Product applications	for machines, for construction equipment for machines for construction equipment
Other characteristics	high-performance 3D autonomous
