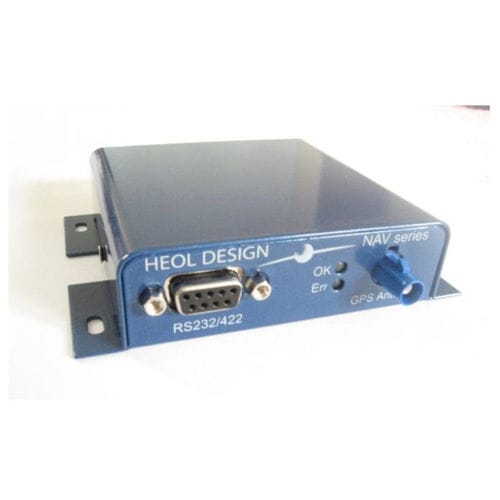

have been designed to provide accurate and reliable navigation information trough a RS232 or RS422 link, with advanced features to interface with your system without the need to develop your own functions.
Based on a high performance GPS or GPS+GLONASS/GALILEO/BEIDOU/QZSS chipset, it delivers accurate Position / Velocity / Time information, even in poor signal level environments (tree foliage, urban canyons).

Features:
- Very-high sensitivity of -165dBm enabling high performance in low level signals environments.
- Update rate up to 10Hz on NMEA output
- Highly accurate pps (pulse per second) signal (±30ns) available on SUB-D9 front panel. RS232 or TTL level.
- Active antenna is voltage selectable : 3.3V or 5V (patented).
- Fully programmable standby mode with less than 0.1µA power consumption (patented).
- Data logging : PVT information logged to Flash memory : up to 15 000 waypoints.
- Temperature / shocks sensors.
- Event input and logic output for your specific applications.
- Customizable firmware to fit your requirements (alarms, etc...).
Compliance
Connectors are compliant with automotive standards.
According to directive, the HEOL-N101 module has passed the
following tests:
EN55022/55011 class B : conducted and radiated emissions.
EN61000-4-2 : Immunity to electrostatic discharges.
EN61000-4-3 : Immunity tests on electromagnetic fields radiated at
radio-electrical frequencies, with 10V/m electromagnetic field.
EN61000-4-4 : Immunity to rapid transients.
EN61000-4-5 : Immunity to surge.
EN61000-4-6 : Immunity tests on conducted interference, induced by
radio-electrical fields.

Parameter Name	Parameter Value
Type	GPS GALILEO BeiDou
Applications	for radio remote control
Interface type	RS232
