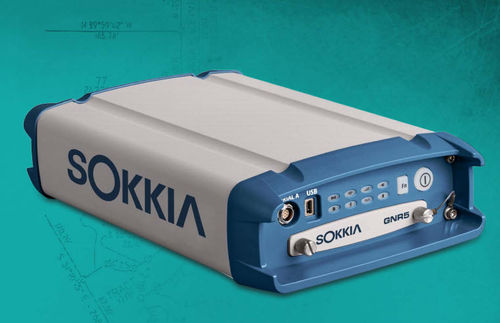

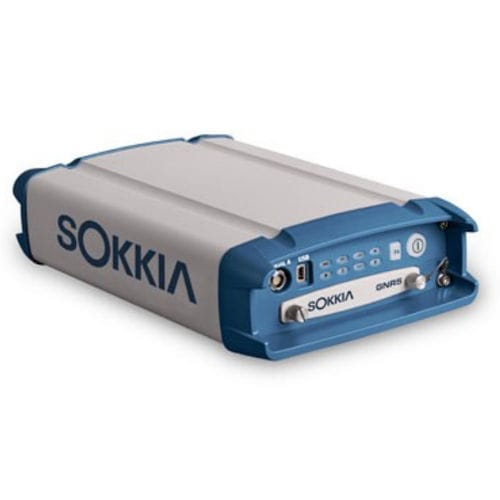

The GNR5 is a GNSS reference receiver for many types of applications among other GNSS infrastructure network receivers, permanent reference stations, field (mobile) base stations and reference stations for scientific analysis.

The GNR5 is capable of tracking all GNSS constellation including GPS, GLONASS, Beidou, Galileo, QZSS as well as SBAS using 452-Channels with optimized satellite tracking technology. In short, the GNR-5 has a rugged and integrated design with longer operating time and high reliability. The GNR5 supports an extended communication options with an advanced web-server functionality.

Key GNR5 features include:

452-Channels with optimized satellite tracking technology
Superior signal tracking across the entire GNSS spectrum
High-precision code and carrier phase measurements up to 100 Hz
Built-in Bluetooth® and Wi-Fi connectivity
Integrated web interface with advanced receiver management features
32GB SDHC storage support

Number of Channels - 452-Channel with optimized satellite technology
Signals Tracked - GPS, GLONASS, QZSS, SBAS, Galileo, L-Band and BeiDou (BDS)
WAAS / EGNOS / MSAS - Yes
Antenna Type - External – Geodetic full wave CR-G5 or PN-A5 antenna
Memory - Removable SD/SDHC memory card up to 32 GB and USB Host support for external USB mass storage devices
Data Update/Output Rate - 1Hz - 100 Hz selectable
Data Output Format - TPS, RTCM SC104 v2.x and 3.x, CMR, CMR+, BINEX, RINEX
Cellular Communications - Integrated GSM; GSM Quad-band, CDMA2000, UMTS/HSPA+
Dimensions (w x d x h) - 5.9 x 7.9 x 2.4 in. (150 x 200 x 60 mm)
Weight - Less than 2 kg
Power Consumption - Less than 5.0 W (typical)
Operating Temperature - -40°C to 80°C with external power / -

Parameter Name	Parameter Value
Type	GNSS wireless satellite GSM
Applications	tracking reference
Interface type	USB, Ethernet
Other characteristics	rugged external
