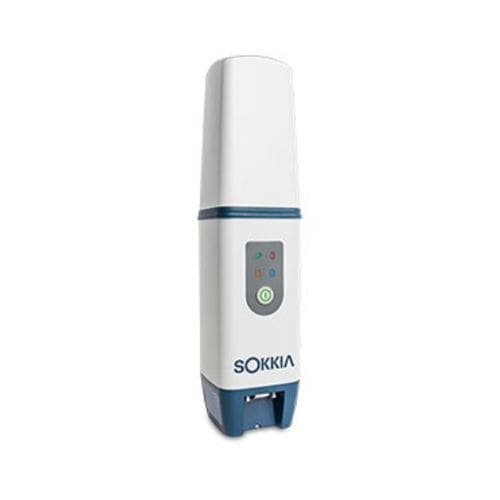

We’ve taken our already revolutionary GCX2 and delivered even more flexibility and functionality to meet the needs of your customers. Improvements include the addition of BeiDou and Galileo tracking capability, longer range base-to-rover communication, and never-seen-before performance in tree canopy situations. The GCX3 may look similar to the previous model but both the receiver board and the antenna element have been updated. Try it and see the difference.

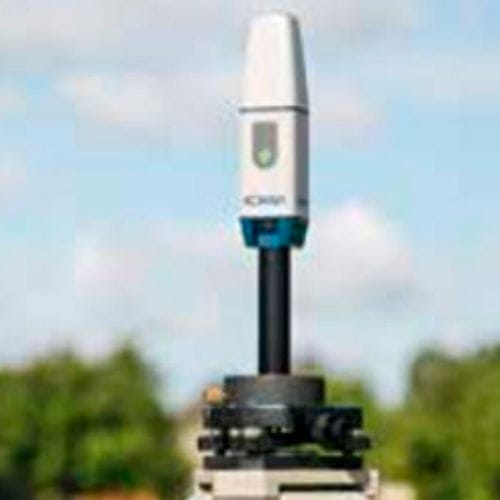

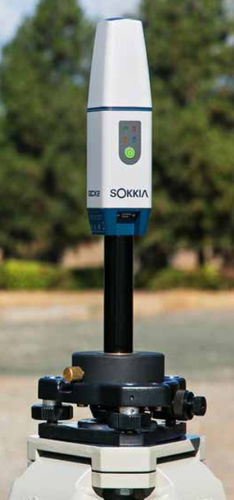

The GCX3 is the ideal local jobsite base/rover RTK (Real Time Kinematic) system or Network RTK rover. And like all of our products, you can customize it to meet your needs and create your own workflows.

All-in-view constellation GNSS receiver
226 optimized satellite tracking channels
Second generation POST2™ (Precision Orbital Satellite Technology) integrated antenna – robust signal tracking even around interference sources.
Compact, lightweight, rugged and cable-free design
Ideal network RTK rover
Wireless, multi-channel Long-Range Bluetooth® technology

Number of Channels - 226 channels
Tracked Signals - GPS L1 C/A, L1C, L2P, L2C
GLONASS L1 C/A, L1P, L2 C/A, L2P
BeiDou B1, B2
Galileo E1
SBAS L1 C/A WAAS/MSAS/EGNOS/GAGAN
QZSS L1 C/A, L1C, L2C
Static/Fast Static - H: 10mm + 0.8 ppm, V: 15 mm + 1.0 ppm
Memory - Internal non-removable memory up to 8 GB
Bluetooth® Modem - v2.1 + EDR
Dust/Water Protection - IP67
Dimensions (w x h x l) - 47 x 197 x 47 mm (1.9” x 7.3” x 1.9”)
Battery Type - Internal non-removable
Operating Time - All day operation in any configuration (up to 10 hours)
External Power Connector - Service port (shared with USB 2.0 communication)

Parameter Name	Parameter Value
Type	GNSS GPS GLONASS wireless RTK satellite dual-frequency
Applications	for surveying tracking
Interface type	USB
Other characteristics	compact rugged multi-channel
