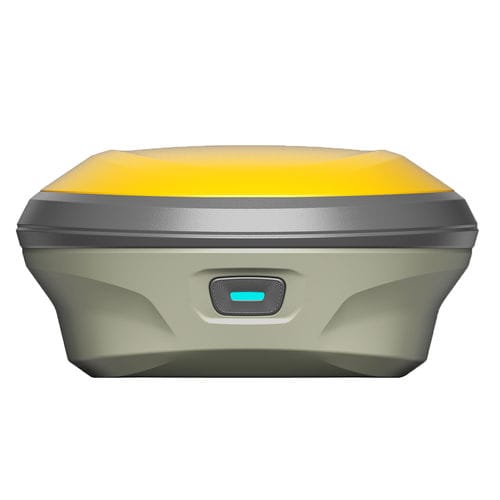

E500 is a light-weight tilt-featured product by eSurvey GNSS. The durable IP67 design makes it possible to work in various of environments. Multi constellation and frequency tracking always gives a Fixed solution for your job. Thanks for the small-size design, E500 is suitable for different applications such as car and machine control.

Overview

1.Multi-constellation and Multi-frequency
With 800 channels of GNSS tracking, E500 provides stable and reliable accuracy. Ail GNSS signais are coming with standard including GPS, BDS,GLONASS, GALILEO, QZSS, IRNSS and SBAS.
2.Intelligent Battery LED Indicators
Without powering on device, it is able to check the battery level on the battery LED indicators by simply clicking the power button.
3.MEMS Dynamic Tilt Survey
eSurvey’s innovation tilt survey solution provides a surprising experience. The sensor is adapted to various of working environments and can be ready within
10 sec. Maximum 60° incline angle ensures a tilt-to-go survey without stopping your work.
4.L-band Atlas
Atlas is a service to provide global précision correction service over L-band satellites. With ATLAS subscription, E500 is able to achieve centimeter accuracy without any base station.
5.aRTK
Powered by Atlas, the innovative aRTK technology operates on any Atlas-capable device by enabling it to maintain RTK-level accuracy, availability, and
reliability when RTK corrections fail without additional cost.
6.WebUl
It is able to view position status, set up working mode, download data and update firmware from Web user interface with any phone, tablet or PC.
7.Intelligent Voice
E500 will broadcast voice automatically to remind user the solution status is changed.

Parameter Name	Parameter Value
Type	GNSS GPS GLONASS GALILEO RTK multi-constellation
Applications	tracking
Other characteristics	with integrated antenna
