About

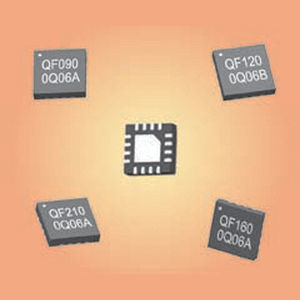

● small size：3X3(mm)
● Excellent phase & amplitude balance
● Excellent repeatability
● Passive RF IC，no need external DC power supply
● With internal 50 ohm termination ( no need external termination )
● Built with leading edge RFIC design technology
● Have one Input port and four Outport ports that
have -6dB -(0°,90°,180°,270°) of phase difference
● Quadrifilar Coupler、 4-Phased Antenna Feeder、
Helicaled Antenna Feeder
● Operating temperature: -40℃ to +85℃
● Tape & Reel
●Realizing the World's Most Compact High Precision GNSS Antenna
(GPS, Beidou, Galileo, Glonass)
● For all the items of above series, samples, small orders(several hundred to several thousand quantities) and bulk orders(10Kpcs) are all available now. For the demand for quantities above 10Kpcs, pls contact our sales representative.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
GNSS
|
| Other characteristics |
|
