GNSS antenna AT600

GNSS antenna AT600

GNSS antenna AT600

About

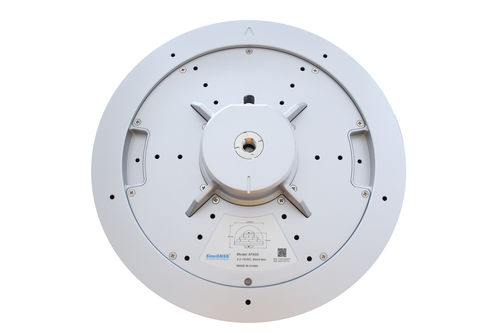

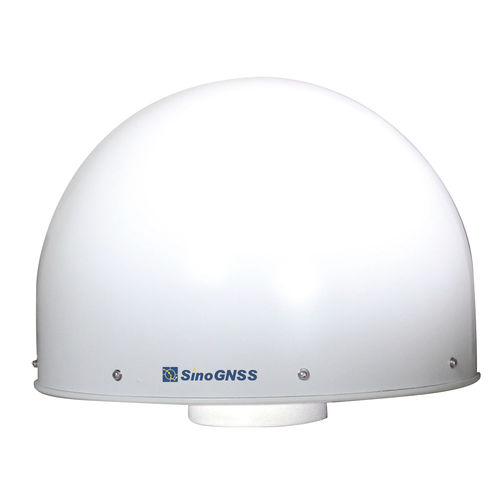

The AT600 is a high-performance choke ring antenna that can track GPS, GLONASS, BeiDou, BeiDou Global and Galileo. Featuring high gain, high accuracy, high reliability and full-constellation. Designed for land surveying, precision agriculture, deformation monitoring, CORS and related GNSS applications.

Features

1. Support BeiDou B1/B2/B3, BeiDou Global B1C/ B2a, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, IRNSS, QZSS, SBAS and L-Band
2. 3D chock ring structure design with excellent multipath rejection capability
3. Low noise amplifier to improve anti-interference performance
4. Sub-millimeter level phase center error with outstanding stability and repeatability
5. High gain for strong low elevation angle signal tracking capability
6. Superior IP68 waterproof and dustproof level make it capable for work in harsh environment



PARAMETERS

Parameter Name Parameter Value
Network
  • GNSS
  • GPS
  • GALILEO
  • GLONASS
Type
  • choke ring
  • 3D
Other characteristics
high-performance
Applications
tracking
Gain (dB)
0 - 50
