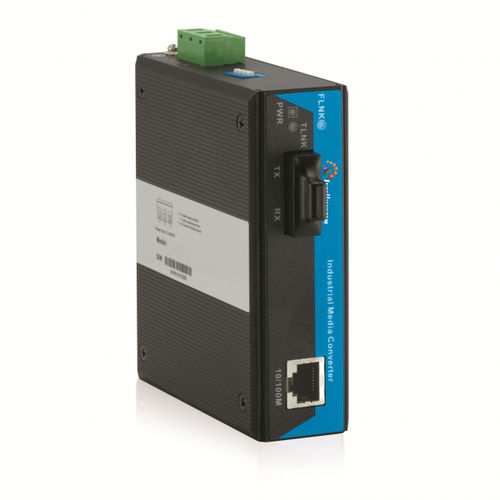

The IT-IMC-101B is a fast 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. Beside this, IMC101B supports electric working mode/rate setting.

The IT-IMC-101B series support 1 TP ports and 1 fiber ports. TP(RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100BaseFX supports single-/multi-mode, SC/ST connector, optional. The IT-IMC-101B adopts industry standard design, IP30 protection, rugged high-strength metal case, power supply input(12V～48VDC), -40 to 75°C working temperature.

Features
IEEE802.3/802.3u/802.3x,store and forward
Provide 1 port 10/100Based-TX and 1 port 100M optic fiber
10/100M, F/H duplex, MDI/MDI-X auto negotiation
-40 to 75˚C operating temperature range
Designed for industrial applications
IP30 protection, rugged high-strength metal case, DIN rail mount
Plug-and-play, easy to installation

Parameter Name	Parameter Value
Type	gigabit media
Bus	Ethernet media
Other characteristics	DIN rail industrial high-speed fast repeater
