About

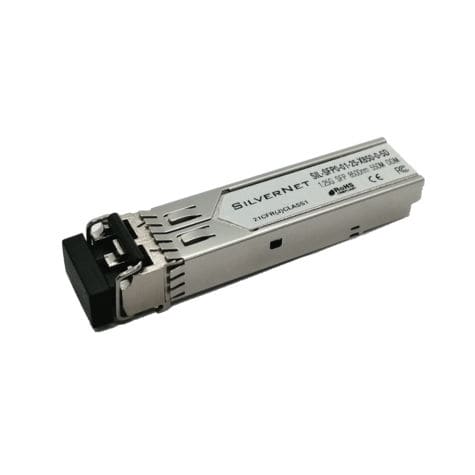

The SilverNet 1Gbps Singlemode and Multimode SFP modules are ideal for use with Gigabit Ethernet switches and routers. They make extending Ethernet over distance easy using the Fibre ports on switches to daisy chain together.
The SilverNet SFP modules are capable of data rates up to 1Gbps over a distance of up to 80km. They are compliant with the SFP MSA specification and operate from 0~+70°C
Operating data rate up to 1.25Gbps
1310nm FP Laser Transmitter
10km & 40km with 9/125 µm SMF
1550nm DFP Laser Transmitter
80km with 9/125 µm SMF
850nm LED Laser Transmitter
550m with 50/125 µm MMF
Single 3.3V power supply and TTL logic Interface
Class 1 FDA and IEC60825-1 Laser Safety compliant
Operating temperature Standard: 0~+70°C Industrial: -40~+85°C
Compliant with SFP MSA specification
Distances from 550m Multimode to 80km Singlemode
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
gigabit Ethernet
|
| Other characteristics |
|
