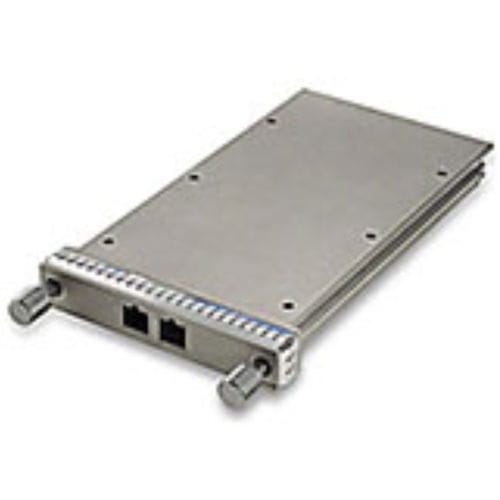

10km Multi-rate 100G CFP Optical Transceiver Module
(CCS-903A09D0-13)

Hot-pluggable CFP form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation < 24W
RoHS-6 compliant (lead-free)
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode fiber (SMF)
Temperature-stabilised 4x25Gb/s LAN-WDM transmitter
10x10G MLD electrical interface
Duplex SC or LC receptacles
MDIO management interface

OTN OTU4 4I1-9D1F
100GBASE-LR4 100G Ethernet

CCS-903A09D0-13 100GE CFP transceiver modules are designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.

Parameter Name	Parameter Value
Network	gigabit Ethernet
