CIG has a complete optical transceiver product portfolio for data center and 5G wireless applications covering various form factors, reaches and speeds to meet fast-growing networking needs.

With a rich, decades-long technology heritage in optical transceiver design and more than 15 years of experience in volume manufacturing, CIG is well positioned to provide customers highest value products and services to meet their demands.

Featured

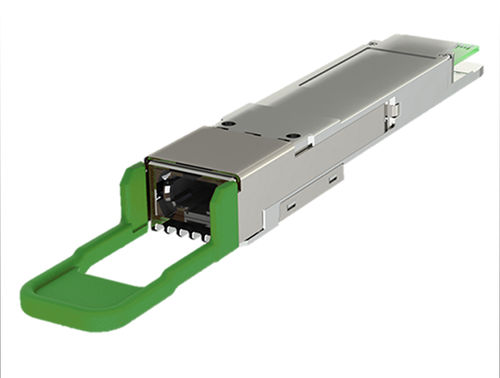

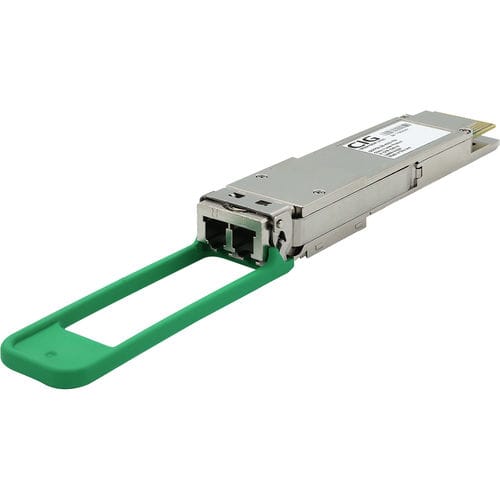

-400 Gigabit Ethernet (425 Gbit/s) Transceiver
-Aggregate data rate of 425 Gbit/s
-Optical Interface: Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-FR4
-Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8
-Reach: Up to 2 km over duplex single mode fiber
-Form Factor: Compliant to QSFP-DD MSA hardware specification
-Optical Transmitter: CWDM EA-DFB
-Optical Receiver: PIN photodetector
-Power consumption: 12 W max
-Operating case temperature: 0 to 70 deg C
-Size (W x L x H): 18.4 mm x 92.9 mm x 8.5 mm (not including pull tab)
-Hot Z-Pluggable to 76-pad QSFP-DD electrical connector
-Latching mechanism: Pull tab
-Management Interface: Two-wire common management interface
-Environment: RoHS10 (2011/65/EU + 2015/863) compliant

Application

For data center, enterprise, and telecom applications

Parameter Name	Parameter Value
Network	gigabit Ethernet
