About

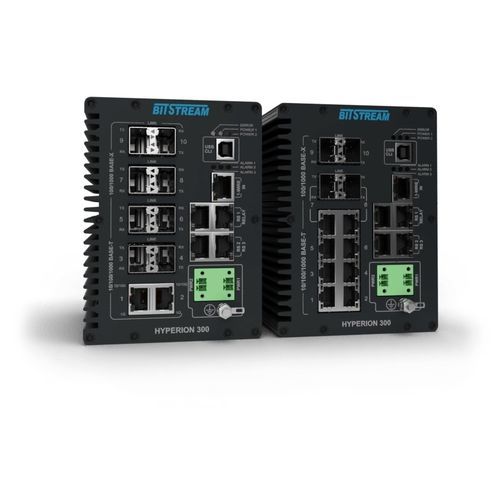

Industrial, 10-port, managed Gigabit Ethernet switch, optional with RS232 / 485 serial interfaces (with the possibility of supporting the GPRS modem for remote management via GSM network), digital inputs, relay outputs and a 1-wire interface.
Properties and Benefits
✓ Available interfaces: up to 8x 10M/100M/1G RJ45 of which 2x 10M/100M/1G RJ45 and FO SFP are
combo ports
✓ Available interfaces: 2x 100M/1000M/2.5G FO SFPs.
✓ Available interfaces: up to 6x 10M/100M/1G FO SFPs
✓ ITU-T G.8032 compliant ring operation with < 20ms reconfiguration, up to 64 rings simultaneously
✓ The following IEEE1588 v.2 (PTPv.2)-based precision time synchronization profiles are available in
the HYPERION-30x.2: 1588 default, G.8265.1 and G.8275.1
✓ NTP protocol in server/client mode and SNTP
✓ Optional control and measurement functions: interfaces 2x RS232, 1x RS232/485 , 1-Wire (T/H), 2x
digital input, 4x relay outputs (available in Hyperion-30x-3 version)
✓ Support for an external MOD-EXT-IO module for increasing the number of I/O interfaces and DC
voltage measurement (Module support available in Hyperion-30x-3 version. When using MOD-EXT-IO module, T/H sensor cannot be connected)
✓ Save Energy with Energy Efficient Ethernet 'EEE' Technology
✓ Radius - centralized authentication
✓ Support for PROFINET Class A, DNP3 and DLMS protocols
✓ Ethernet OAM support (Link OAM and Service OAM)
✓ Access security SNMPv3, HTTPS, SSH
✓ Operating temperature: -40 to +85°C when conditions are met
✓ Rugged IP-30 DIN metal housing
Optional features
✓ PoE÷PoE+ support up to 30W per port, power on all ports up to 240W, PoE watchdog
Optional features under the license
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
managed
|
| Number of ports |
10 ports
|
| Network |
|
| Mounting |
|
| Other characteristics |
|
| Applications |
|
