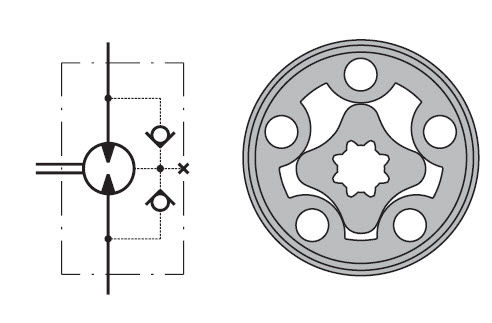

This gerotor set comes with a spool valve integrated with an output shaft, supported by hydrodynamic bearings. In addition to this, the MM series of products also ensures a distribution valve that is integrated into the output shaft.

Next, the cardan shaft rotates the distribution valve and mechanical energy from the generator set to the output shaft.

Parameter Name	Parameter Value
Technology	gerotor
Pressure	Min.: 90 bar (1,305 psi)Max.: 140 bar (2,031 psi)
Rotational speed (rpm)	400 - 1950
Torque (Nm)	11 - 45
Displacement	Min.: 1 cm³ (0.03 US fl oz)Max.: 49 cm³ (1.66 US fl oz)
