Characteristic:

1. High positioning accuracy
Precision grinding gear, smooth of gear surface, high accuracy of tooth profile.
Backlash ≦ 1 arcmin

2. Compact design
Shorter than general shaft type reducer, suited on the limited space.

3. High Efficiency
One-stage 97%, Two-stage 94%

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500 20 - 50 100 - 200 50 - 100 500 - 1000 1000 - 2000 2000 - 5000 5 - 10 10 - 20 5000 - 10000
Number of stages	single-stage two-stage
Performance	low-noise precision high-performance low-backlash high-efficiency high-torque maintenance-free high-rigidity for heavy loads high-speed high-capacity

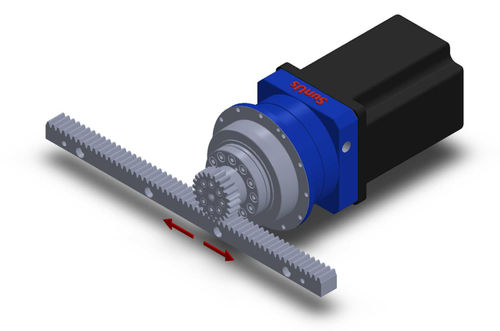

Applications	for rack-and-pinion drives for machines for lathes
Other characteristics	compact industrial modular with flange for machine tools high-quality
Rotational speed (rpm)	2200 - 6000
Backlash (°)	0.02 - 0.07
