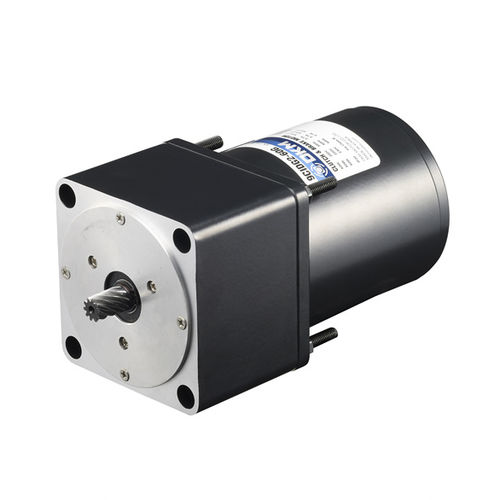

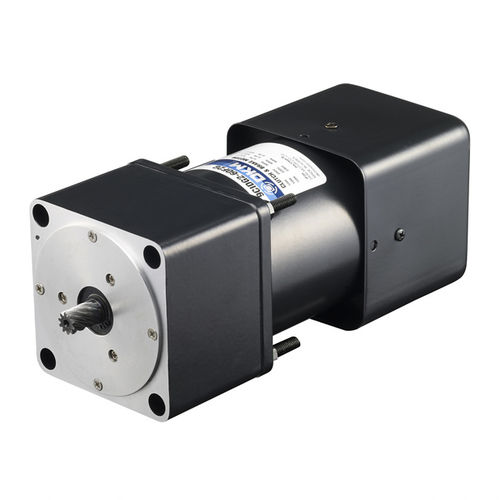

Clutch & Brake Motor
- Suitable for high frequent start and stop operation
- Stop in 0.1 sec. when switched off
- Overrun: 1 time
- Possible for reverse rotation

Suitable for High-frequency Operation
An internal clutch & brake mechanism for use with a gearhead is employed in DKM Clutch & Brake Motor. By the combination of a constantly rotating induction motor and a clutch and brake unit, the function of frequent start/stop, positioning, indexing, jogging and incremental feeding is available.

Characteristics C.B Motor
DKM C.B Motor is designed for the quicker response time and higher torque to move the load. To meet high-frequency, starting and stopping applications, DKM uses a induction motor for its continuous duty rating. So Clutch & Brake Motor is not suitable for frequent bi-directional starting and stopping motion but suitable for uni-directional movement.

Parameter Name	Parameter Value
Motor type	three-phase single-phase induction
Type	helical
Shaft orientation	coaxial
Power (W)	10 - 50 50 - 100 100 - 500
Voltage (V)	220 - 110
Torque (Nm)	0.5 - 1 0.1 - 0.2 0.2 - 0.5 0 - 0.1
Product applications	industrial
Other characteristics	4-pole with multi-disc clutch-brake
