Next Dimension – ND300

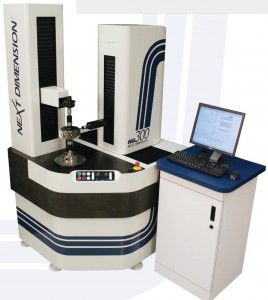

Designed to maximize uptime and throughput, the ND300 gear measurement system includes:

Intuitive, user-friendly navigation based on the Microsoft Windows® software platform, making it easy to use, reliable, customizable and easily upgraded
The ability to measure a gear or related features in relation to functional datums and/or compare measurements to manufacturing datums thus eliminating the need for expensive tooling or fixtures
A modular design approach to the hardware and software allowing for easy system upgrades and expansions
The ability to compare output results in multiple gear standards simultaneously
Complete user control over the format of the analysis reports generated – the user can choose to plot profile, helix, index, pitch, and tooth thickness along with standard analyzed parameters and accuracy class all on one page!
True 3D measurements in an error-compensated work envelope produced by PECo’s proprietary data acquisition algorithms and Renishaw® 3D probe technology
A 3-year warranty and world-class service and support
ND300 Machine Capabilities

Measure components up to 305mm in diameter
(ND300XR measures components up to 457mm in diameter)
Off-axis alignment (machine to part coordinates)
Partial Gear
Tooth Thickness
Dimension Over Pins
Gear Calculator
Networking & Offline Work Stations
Internal / External Parallel Axes Gears
Splines
Creation of E-mailable Inspection Results
Root Scanning
Roundness
Unknown Gear
Unknown Feature Scan
SPC
Cluster Gear
Tooth Alignment
Tooth Profile
Planes
Diameters
Geometric Features
Root Radius
Helical Rotors

Parameter Name	Parameter Value
Applications	for gears
