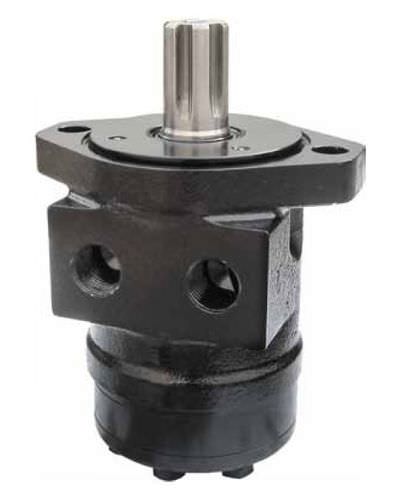

Gear hydraulic motor WD series

Gear hydraulic motor WD series

Gear hydraulic motor WD series

About


The WD motor series is an economical solution for medium duty applications requires high torque. It has smaller outline yet still provides high efficiency across a wide performance range. Its integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life.
Displacements: 1.5-23.7 cid (24-386 cc)
Max Speed: 1361 rpm
Max Flow: 16 gpm (61 lpm)
Max Torque: 4,248 lb-in (480 Nm)
Max Pressure: 2,000 psi (138 bar)
Specs are listed as continuous ratings.
The pdf catalog will list intermittent and peak performance data.



PARAMETERS

Parameter Name Parameter Value
Technology
gear
Pressure
Max.: 2,000 psiMin.: 0 psi
Rotational speed (rpm)
0 - 1361
Torque (Nm)
0 - 480
Displacement
Max.: 386 cm³ (13.05 US fl oz)Min.: 24 cm³ (0.81 US fl oz)
