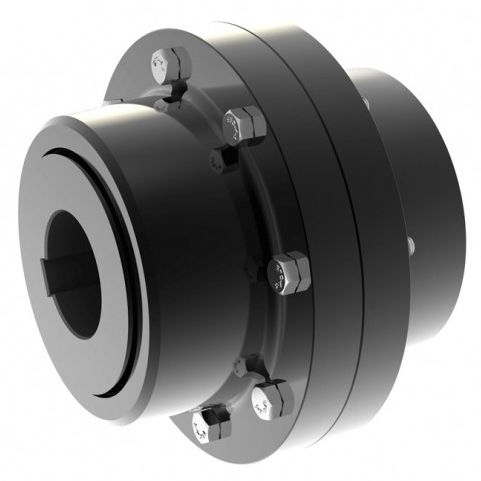

Elign Gear Couplings
A Flexible Coupling is used to join two rotating shafts for efficient transmission of mechanical power. Although the shafts are accurately aligned at the time of installation, it is likely that during the operation the alignment may get disturbed due to setting of foundation, thermal expansion, shaft deflection, wearing out of other parts, improper maintenance and many more reasons.
Features & Benefits
Higher Width to Height ratio. Teeth are wider and more stronger.
Larger Bores / Lower Weights / Compacts
Manufactured from Carbon Steel of CK-45 / En 9 / 42CrMo4 Grade
High Tensile Fitted Bolts – 12.9 Grade
Available in Pilot Bore or with Finished Bore & Key-Way
Triple Crowned and Barreled Hobbed Teeth manufactured on CNC Hobbing Machine for Max. Strength, Flexibility & Long Life
Full Description
A Flexible Coupling is used to join two rotating shafts for efficient transmission of mechanical power. Although the shafts are accurately aligned at the time of installation, it is likely that during the operation the alignment may get disturbed due to setting of foundation, thermal expansion, shaft deflection, wearing out of other parts, improper maintenance and many more reasons.
Due to this unavoidable misalignment occurring during the operation a gear coupling provides a better solution to compensate or minimize the effect of misalignment (Radial, Axial and combined Radial & Axial). The Benzlers Radicon Flexible gear Couplings (Elign) are ideally suited for wide range of application in the entire field of drive technology.

of tested quality forged carbon steel and passes through a number of quality checks.



PARAMETERS

Parameter Name Parameter Value
Type
  • gear
  • torsionally rigid
Product applications
  • transmission
  • for shafts
  • for pumps
Other characteristics
  • compact
  • misalignment correction
  • high-torque
Installation system
flange, sleeve
Torque (Nm)
400 - 400
