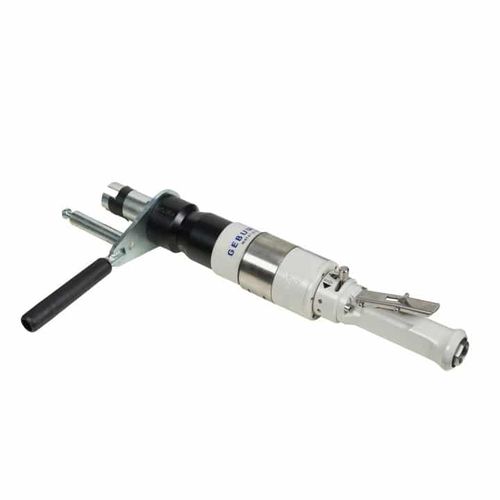

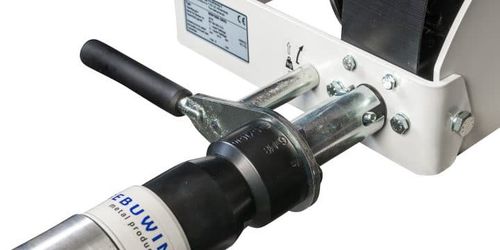

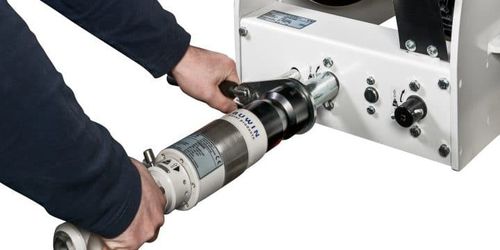

The auxiliary motors are used to provide an alternative for the hand operating of wormgear winches. Gebuwin supplies an air- and electric motor and both can easily be attached to the drive shaft. The air- or electric auxiliary motor can be used on the Gebuwin worm gear winches starting from 1000 kg. Hoisting speed will go twice as fast as by hand.

Product specifications
- Note: the combination of a manual driven winch and a pneumatic auxiliary motor is not an alternative to an pneumatic driven winch
- Robust slow speed drive units manufactured for non-frequent usage
- Easy to operate for worm gear winches starting from 1,000 kg
- Used on a location where several hand winches need to be operated
- Filter and hose fitting are included
- Zinc plated winch adapter system
- Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M

Parameter Name	Parameter Value
Technology.	gear
Torque (Nm)	60 - 90
Rotational speed (rpm)	140 - 140
Power (W)	200 - 200
