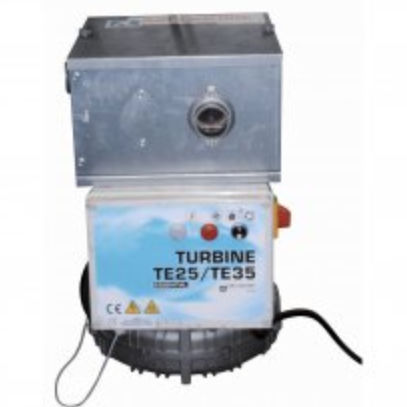

ESSENTIAL Turbines TE35
Turbine for Torch

The ESSENTIAL Turbines TE35 ensures, for one or two torches an efficient extraction flow from 80 to 135 m³/h depending of the torch.

Product Advantages
✔ To be used fixed or on mobile trolley
✔ Flexibility, can be installed vertically or horizontally
✔ More efficiency, help the welder for capture at source.

TE35 turbine equipped with DUALFLOW, filtration & self-cleaning

Extraction is obtained at a high negative pressure rate due to the advanced air flow design of the torches.
A metallic pre-filter is integrated into the ESSENTIAL TE35 turbine. The unit is provided with an arc detection sensor for an automatic start/stop.
Mounting of the unit can be horizontally or vertically depending his location.
The TE35 turbine use a 3Ph 3kW motor for industrial use.

Maximum flow 310 m³/h, maximum vacuum 30 000 Pa, 3 kW motor, 51 kg.

The TE35 Turbine can be provided with filtration device, DUALFLOW process and be equipped with a self-cleaning cartridge system.

The extraction at source
The extraction at source provides the assurance of a healthy environment for welders in compliance with regulations and labour laws. In order to meet these requirements, Oerlikon has developed a range of”all in one” torches that offer the fundamental characteristics of conventional MIG-MAG welding torches combined with an effective collector fume extraction system: TE35 turbines are the perfect industrial tools to maintain the environment safe.

Because the extraction system follows the welder’s arm, it is efficient in all circumstances and can improve the productivity and working conditions of welders.

Parameter Name	Parameter Value
Type	gas
Rated power kW	3 kW (4.08 hp)
