With two available models—the 9HA.01 gas turbine at 448 MW and the GE 9HA.02 turbine at 571 MW—customers can easily select the right model and capacity to help meet their generation needs.

Record-breaking 9HA turbine efficiency
GE’s 9HA gas turbine delivers a validated, all-around solution for demanding customer economics. It offers the most cost-effective conversion of fuel to electricity as well as industry-leading operational flexibility for increased dispatch and ancillary revenue.

Industry-leading operational flexibility with the 9HA
GE’s H-Class combined-cycle power plant has industry-leading flexibility and full combined-cycle plant load in less than 30 minutes, making it a great complement to intermittent renewable sources.

Lowest emissions in the industry
The 9HA’s DLN 2.6e combustion system offers a step change in performance, emissions and fuel flexibility. The DLN 2.6e maintains many of the elements of GE’s DLN 2.6+ combustion system and introduces advanced premixing for reduced NOx emissions while enabling high plant efficiency. Its advanced premixer enables expanded fuel flexibility to operate on both “rich” and “lean” gaseous fuels, a 50% hydrogen (H2) capability with a technology pathway to 100%, a gas turbine turndown to 30% load, and an optional park mode at 7-15% load, further reducing customers’ operating costs.

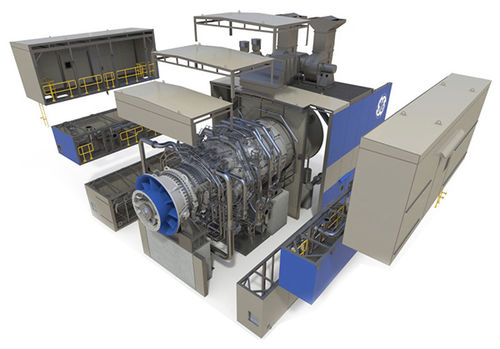

The power of modularity
GE’s HA gas turbine auxiliary systems are pre-configured, factory assembled and tested modules engineered to reduce field connections, piping, and valves.

Parameter Name	Parameter Value
Type	gas
Applications	for power generation
Other characteristics	combined-cycle
Rated power kW	448,000 kW, 571,000 kW (609,110.28 hp)
