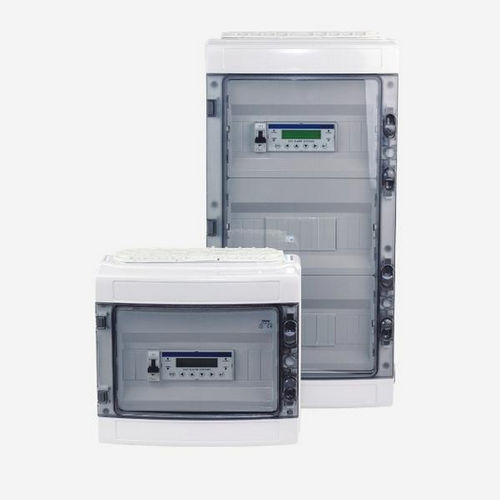

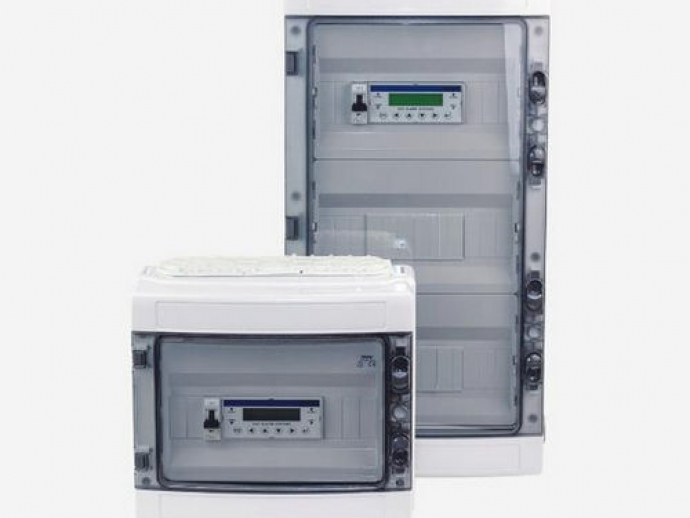

PolyGard® DGC-06 is a gas detection monitoring receiver. It gets the signal from up to 128 gas detectors and shows concentration. In the matter of danger, the alarm goes off.
Using one standard GC-06 module and up to 7 EP-06 extensive modules, you can monitor and control PolyGard®2/ PolyXeta®2, and 32 MC2 analog sensors. Each sensors can adjust four alarm values and offers up to 32 relay outputs and 16 4~20 mA analog outputs. Connecting to the user's central system is convenient, providing various communication interfaces and protocols, including RS-485 Modbus RTU, TCP/IP, BACnet, etc.

Features and Benefits

Up to 128 gas sensors: 96 PolyGard®2/ PolyXeta®2 and 32 MC2 analog sensor
One GC-06 main module and 7 EP-06 extensive modules
Suitable for over 50 toxic, falmmable and refrigerant gas types
4 adjustable alarm setpoints per sensor
5 multilingual support menus
4 levels of menu access
Convenient configuration value change with PCE06 software
Up to 32 relay functions and 16 4-20 mA analog outputs
UPS backup battery(Optional)
Power failure detection
Data logger function(USB)
Modbus RTU, TCP/IP, BACnet communication modules(Option)
EN 50545-1 compliant
SIL2 compliant

Parameter Name	Parameter Value
Type	concentration
Applications	alarm for gas
Interface	Modbus USB IP RS-485
