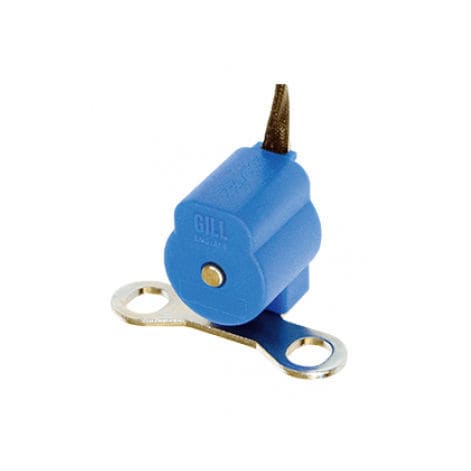

The Standard Ignition Pickup has been designed for the global gas engine industry. This robust ignition pickup incorporates easy to fit mountings and a standard AMP Econoseal connector for simple installation.

The Standard Ignition Pickup is rated to 10,000 teeth/second max rotation speed, with a nominal working gap of 2mm when used with the Gill timing disk.

Easy to fit mountings

Designed for the global gas engine industry

Standard AMP Econoseal connector

10,000 teeth/second max rotation speed

TECHNICAL
Resistance (nominal):
575 ohms

Working Gap:
2mm nominal (with Gill timing disk)

Maximum Speed:
10,000 teeth/second

Connection:
AMP Econoseal 'J' Series

Parameter Name	Parameter Value
Options	for gas engines
