Robot traverse axes, jig axes

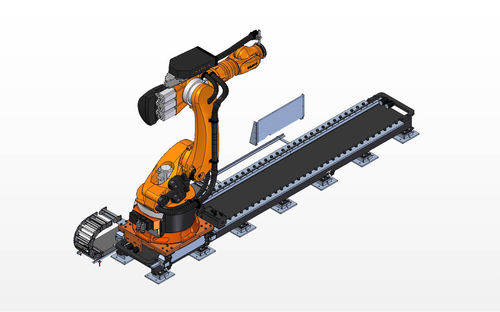

ZOLLERN robot traverse axes (ZRV) can be used for robots of all manufacturers, such as ABB, Kuka, Fanuc and Stäubli. The robot traverse axes are developed and produced for systems in the automotive industry, the aerospace industry, the machine tool and metalworking industry, the construction industry, the food industry and other industries.

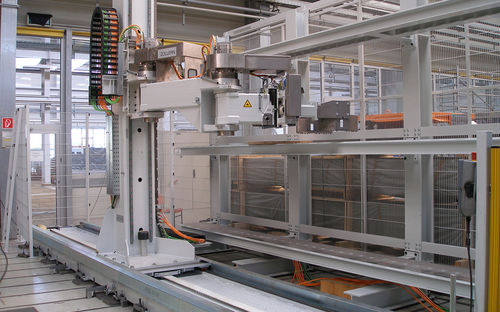

ZOLLERN jig axes (ZVA) are suitable for tool and jig changing as well as transporting large parts with a transport weight from 100 to 15,000 kg. The jig axes are developed and produced for systems in the automotive industry, the aerospace industry, the machine tool and metalworking industry, the construction industry, the food industry and other industries.

Robot traverse axes version
Base support in solid welded steel design
Hardened and ground flat guides
Dirt scraper systems on roller blocks
Torsionally-stiff, solid traversing carriage for receiving the robot
Traversing carriage with individual and easily exchangeable roller blocks
Drive via pinion and rack with powerful drive motors
Also available as a special design
Installation position on the ground, elevated, on the ceiling or on the wall
Bending and torsionally stiff design

Base support in solid welded steel design
Hardened and ground flat guides
Dirt scraper systems on roller blocks
Torsionally-stiff, solid steel tube frame carriage for holding the jig
Carriage with individual and easily exchangeable roller blocks
Drive via pinion and rack with powerful drive motors

Parameter Name	Parameter Value
Type	gantry
